GTX2860R Gen1 – Bolt-On Turbo for 1.6L Ecoboost Fiesta ST

What is in the kit

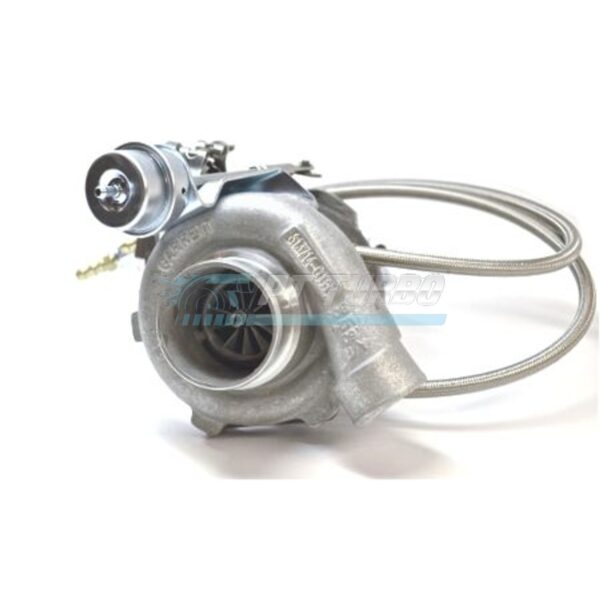

• Garrett GTX2860R Gen1 turbocharger, internally wastegated
• V-band flanged turbo adapter
• Adapter elbow for the stock intake pipe position
• New steel-braided oil feed line and coolant lines
• High-flow charge air pipe
• 1″ port for a blow-off valve, supplied plugged

Fitment

• Works with a downpipe made for the stock turbo flange
• Uses the stock oil drain tube

Results ATP reports

ATP rates the kit as capable of more than 400 horsepower. On a 2014 Fiesta ST it reports more than 310 wheel horsepower on the dyno (more than 330 with DIN correction) and a quarter mile of 12.4 seconds at over 110 mph with a Cobb tune. These are the distributor’s figures for its own car; your result depends on fuel, tune and supporting parts.

Blow-off valve: read before ordering

The stock Fiesta ST turbo has an electric diverter valve built into its compressor housing. Fitting a GT or GTX turbo removes it, and the stock valve does not flow enough for the larger turbo in any case, so a high-flow mechanical (vacuum-operated) blow-off valve is needed. The kit has a 1″ port for one, supplied plugged. ATP recommends the TiAL Q blow-off valve with a 1″ hose clamp flange, run from a vacuum source block and 3/16″ vacuum hose, and states that a vent-to-atmosphere valve of any brand works without drivability problems.

To avoid a fault code, have the stock diverter valve switched off in the engine tune. If the tune cannot do that, leave the valve’s electrical plug connected.
