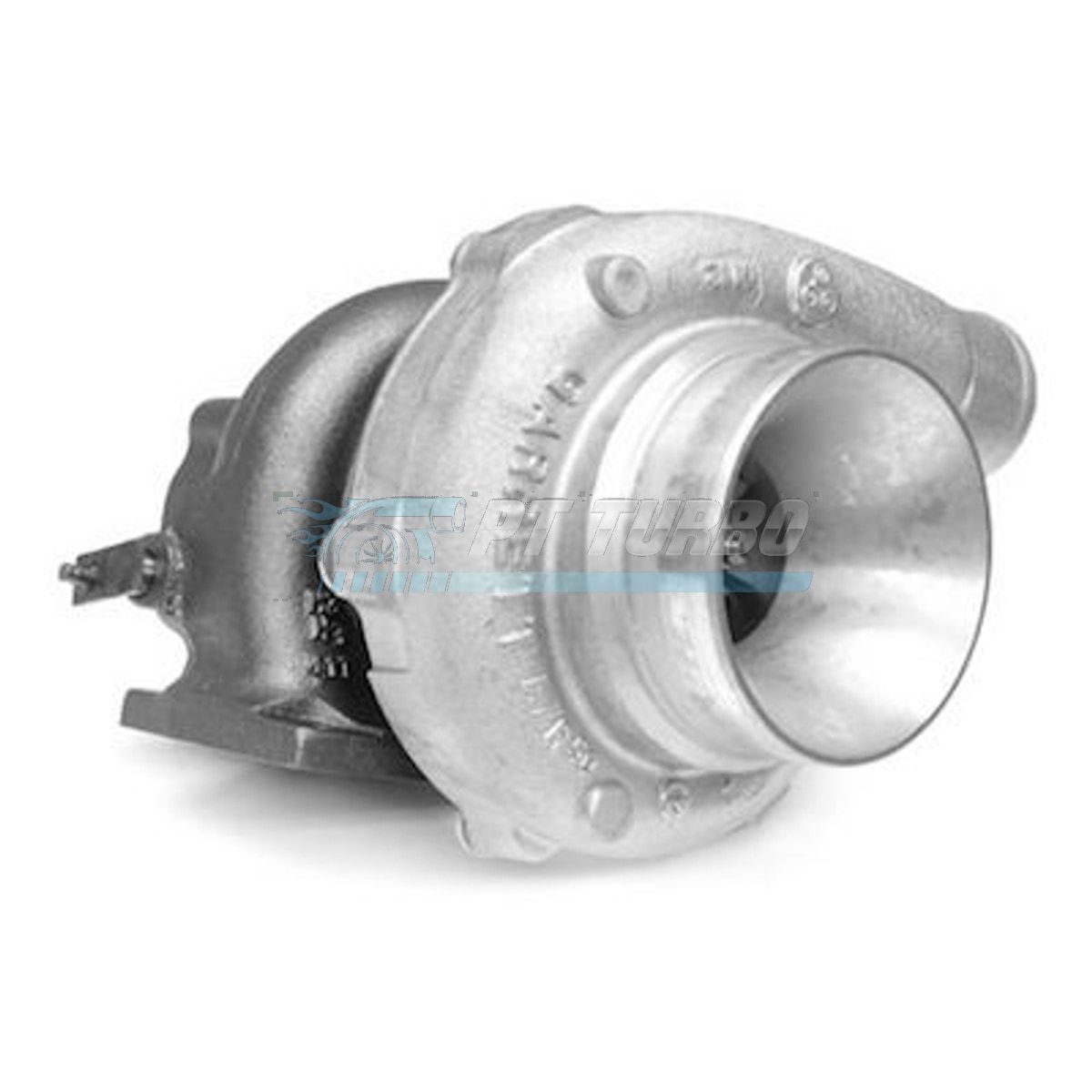

Name: GT3071R-WG Dual BB, 86AR, 90 Trim Turbine, Ball Bearing Turbo (aka GT2971R-90T) W/ HOUSING CHOICES
Brand: PT Turbo
SKU: PTT-TBO-026
Availability: InStock

The GT3071R-WG Dual Ball Bearing turbo delivers the high-flow compressor performance of the larger-framed GT3071R platform while retaining the compact, popular turbine housing style found on GT28R and GT2871R turbos. It’s built for enthusiasts who want to step beyond GT28R-class airflow without changing their existing GT28R/GT2871R-style housing footprint. This configuration is purpose-built with its own wheel trim, turbine A/R, and compressor housing to support significantly higher airflow than the turbos it’s styled after.

Specifications

Compressor Wheel: 71mm
Compressor Trim: 56 trim
Compressor Housing A/R: .50 a/r
Compressor Inlet: 4.00″
Turbine Wheel: 56.5mm
Turbine Trim: 90 trim
Turb

Weight 20 lbs

Turbine Hg AR
Standard, .61 A/R (Available in V-Band Inlet, V-band Outlet, and Ni-Resist) +$150.00, .63 A/R (Available in T25 Inlet, 5 Bolt Outlet, and Internally Gated; or T3 Inlet and 4 Bolt Outlet), .83 A/R (Available in V-Band Inlet, V-band Outlet, and Ni-Resist) +$150.00, .86 A/R (Available in T25 Inlet, 5 Bolt Outlet, and Internally Gated), 1.01 A/R (Available in V-Band Inlet, V-band Outlet, and Ni-Resist) +$150.00

SELECT Turbine Housing
Standard, T25 Inlet, 5 Bolt Outlet, and Internally Gated, V-Band Inlet (Machined from T25), 5 Bolt Outlet, Internally Gated, Ni-Resist, V-Band Inlet and V-Band Outlet, T3 Inlet and 4 Bolt Outlet

SELECT Compressor Housing
Standard, T04E Frame and 2.75" Inlet, T04E Frame and 4" Inlet (DEFAULT), Super Compact GT25R, GT28R 2 Bolt Inlet & 3 Bolt Outlet, Compact T04B Frame (GT28RS/GT2871R External Layout)

Optional Anti-Surge Machined Compressor Housing - Available for T04E Frame 4" Inlet ($65.00)
Standard, Optional Anti-Surge Machined Compressor Housing – Available for T04E Frame 4" Inlet ($65.00)

Optional Polished Compressor Housing
Standard, Optional Polished Compressor Housing

Turbo Model
GT3071R
