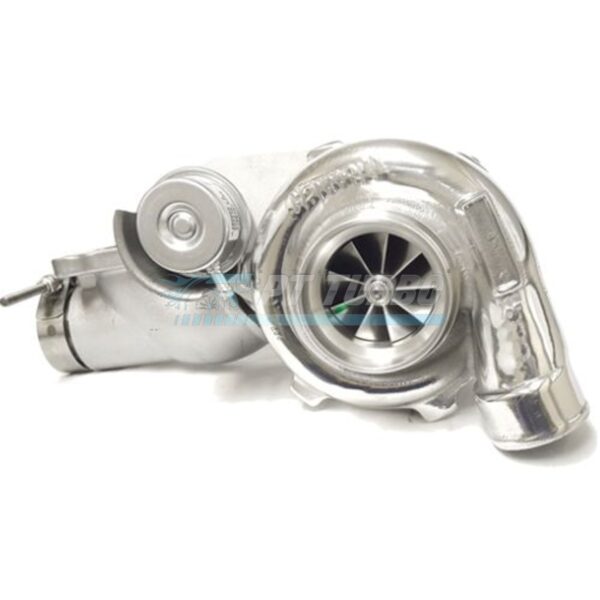

The GEN2 GTX3076R is a direct bolt-on turbocharger upgrade purpose-built for the Ford Focus ST 2.0L EcoBoost platform. Designed for enthusiasts who want a significant step up in boost capability without sacrificing the simplicity of a stock-location install, this turbo integrates with the vehicle’s existing fuel system and charge piping. It’s the choice for owners who want a serious performance upgrade now, with the flexibility to expand their setup down the road.

Specifications

• Compressor Wheel: 76mm
• Turbine Housing A/R (Default): .86 A/R
• Turbine Housing A/R (Optional): .64 A/R
• Wastegate Configuration: Internally wastegated
• External Wastegate Provision: Built-in external wastegate port (Tial MVS) for future expansion
• Turbo Adapter: V-band flanged turbo adapter
• Compressor Housing Finish: Standard polished compressor housing
• Oil Feed Line: New steel braided oil feed line provided
• Coolant Lines: New steel braided coolant lines provided

Performance & Application

This GTX3076R kit is engineered specifically for the 2.0L EcoBoost engine found in the Ford Focus ST, delivering aggressive boost capability while remaining internally wastegated for a clean, stock-style install. The built-in external wastegate port means this turbo is ready to grow with a build, giving owners a path toward future up

Downloads

• Focus ST ATP TurboUpgrade Install
