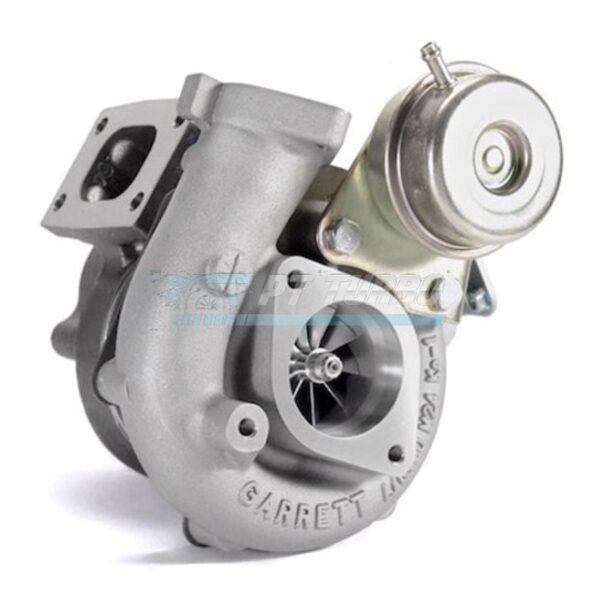

The GEN2 GTX2867R is a purpose-built drop-in turbo upgrade engineered specifically for the Nissan SR20DET platform. Designed for enthusiasts running an original GT2560R who want a straightforward path to more power without fabrication headaches, this turbo delivers a significant leap in flow capacity while retaining factory-style bolt-on simplicity. It’s the choice for SR20DET owners who want serious top-end power potential without sacrificing a true drop-in installation.
Specifications
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
- Turbine Housing Flange: T25, internally gated
- Turbine Housing A/R: .64 A/R or .86 A/R
- Wastegate Actuator: Internal, 12 to 14PSI
- Compressor Housing Inlet Flange: 2 Bolt
- Compressor Housing Outlet Flange: 3 Bolt
- Bearing Type: Ball-bearing center section
- HP Potential: Up to 550HP
- Garrett P/N: 466541-5008S
- Also Known As: GEN2 GTX2867R
Performance & Application
Built around Garrett’s advanced ultra high flow compressor wheel, the GEN2 GTX2867R is engineered for SR20DET owners looking to move well beyond the limits of the factory GT2560R turbo. The ball-bearing center section supports quick spool characteristics while the compressor wheel design opens up substantial top-end flow potential. Available with either turbine housing A/R option, this turbo can be tuned toward a more responsive powerband or a higher-flowing top-end setup depending on build goals. It’s an ideal choice for SR20DET builds targeting a meaningful power upgrade while keeping the installation process as close to bolt-on as possible.
Compatibility & Fitment
- Direct drop-in for Nissan SR20DET platforms originally equipped with a GT2560R turbocharger
- Retains Nissan SR20DET style compressor housing configuration
Frequently Asked Questions
- What HP can the GEN2 GTX2867R support?
- The GEN2 GTX2867R’s advanced ultra high flow compressor wheel supports up to 550HP potential flow.
- Is this a ball bearing or journal bearing turbo?
- The GEN2 GTX2867R features a ball-bearing center section.
- What turbine housing A/R options are available?
- The turbine housing is available in either .64 A/R or .86 A/R, both with an internally gated T25 flange.
- What vehicles is the GEN2 GTX2867R compatible with?
- It is a direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R turbocharger.
- What wastegate pressure range does this turbo use?
- It includes an internal wastegate actuator rated for 12 to 14PSI.
For SR20DET owners seeking a genuine drop-in upgrade with real top-end power potential, the GEN2 GTX2867R delivers Garrett engineering in a package built to bolt straight into your existing setup.
