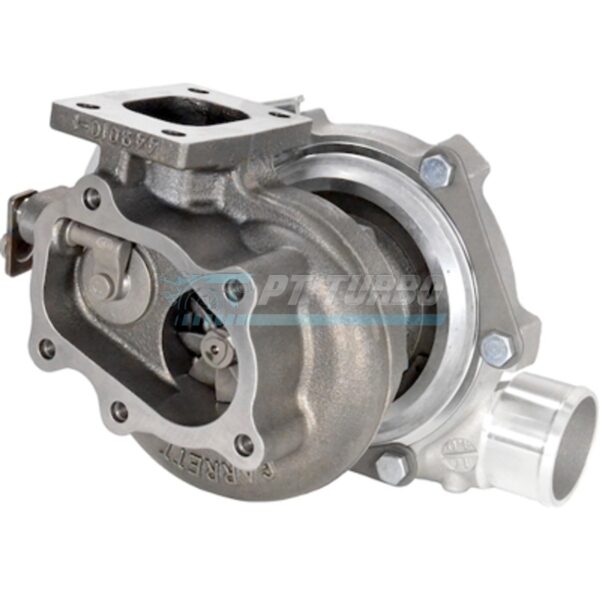

The Garrett GEN2 GTX2860R dual ball bearing turbocharger is engineered for enthusiasts demanding serious top-end power without sacrificing the responsive spool characteristics that make GTX-series turbos the benchmark in performance boosting. Featuring an advanced GEN2 billet compressor wheel, this turbo is built for high-performance builds that need a proven, capable platform. With its T25 flanged Garrett internal wastegate turbine housing, it’s the right choice for those seeking integrated boost control and a bolt-on solution engineered for serious output.

Specifications

• Compressor Wheel Inducer: 46mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Turbine Housing A/R: .86
• Bearing Type: Dual Ball Bearing
• Turbine Housing Flange: T25 Flanged, Garrett Internal Wastegate
• Actuator: 14 psi (Standard)
• HP Capacity: 475HP

Performance & Application

This GEN2 GTX2860R is built for high-performance applications requiring strong power delivery from a compact, responsive turbocharger package. The GEN2 billet compressor wheel provides the durability and flow capability needed to support serious horsepower goals. Its internal wastegate turbine housing design simplifies boost control integration for builds seeking a streamlined, high-performance setup. This turbo suits enthusiasts pursuing aggressive power targets while maintaining quick spool response.

Frequently Asked Questions

What HP can the GTX2860R support?

The advanced GEN2 billet compressor wheel is capable of supporting up to 475HP.

Is this a ball bearing or journal bearing turbo?

This is a dual ball bearing turbocharger.

What is the turbine housing A/R ratio?

The turbine housing A/R ratio is .86.

What actuator pressure comes standard, and are other options available?

The standard configuration includes a 14 psi actuator. An optional low pressure actuator rated at .5 bar (7 psi) is also available.

For enthusiasts who demand a proven GEN2 platform capable of serious power with integrated wastegate control, the GTX2860R dual ball bearing turbocharger delivers the performance foundation your build requires.
