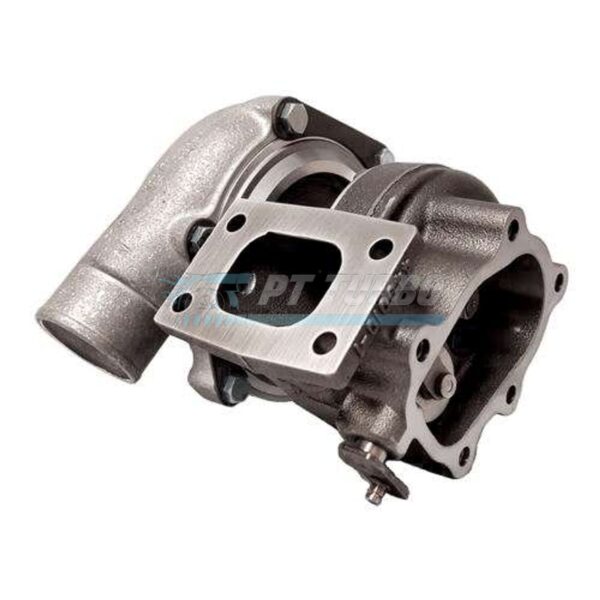

GEN2 - Garrett GTX3076R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4"

GEN2 – Garrett GTX3076R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4″

$2,415.34

Garrett GEN2 GTX3076R dual ball bearing turbo with advanced billet 58/76mm compressor wheel (750HP capacity, 58 trim) and 60/55mm turbine wheel (84 trim). Features .86 A/R T25 internal wastegate turbine housing with GT28-style 5-bolt exit and 0.60 A/R compressor housing.

Specifications

  • Bearing Type: Dual Ball Bearing
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: .86
  • Turbine Housing Flange: T25 Internal Wastegate
  • Turbine Housing Exit: GT28 style 5 Bolt Exit, 4″
  • HP Capacity: 750HP
Weight 8 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “GEN2 – Garrett GTX3076R Turbo with .86 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4″”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the GTX3076R

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
