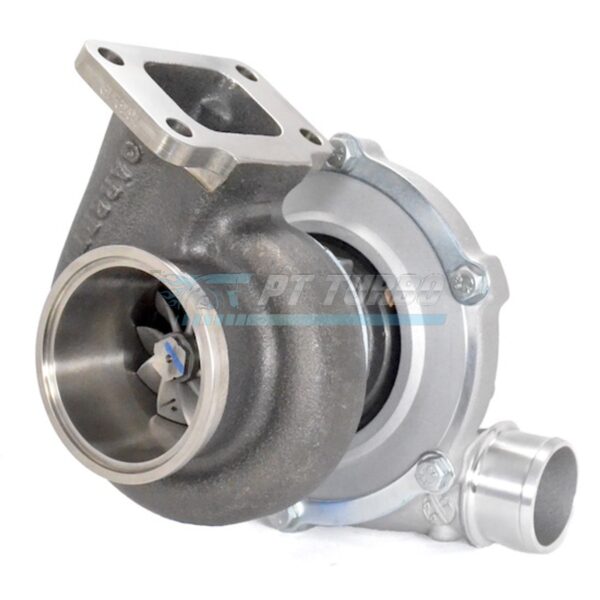

GEN2 – Garrett GTX3076R Turbo with .63 A/R T3 Turbine Housing w/3″ GT VBAND conical exit w/81mm lip

Specifications

• Compressor wheel: 58 mm inducer, 76 mm exducer, 58 trim, GTX GEN2 billet
• Compressor housing: 0.60 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Turbine housing: 0.63 A/R, open T3 inlet, 3″ GT V-band outlet with 81 mm lip
• Bearings: dual ball bearing

Compressor housing choices

• T04E frame (standard): 4″ inlet, 2″ outlet, machined ported shroud
• T04B frame (compact): 3″ inlet, 2″ outlet, the same layout as the GT2860RS and GT2871R

Connections

• Oil feed: -4AN with a restrictor
• Coolant: two 14 mm ports
• Manifold side: T3 flange
• Downpipe side: 3″ GT V-band flange and clamp
