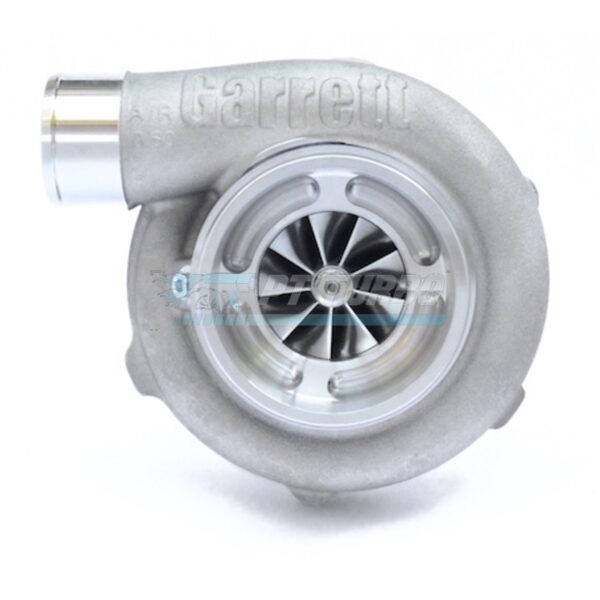

The Garrett GTX3076R Reverse Gen2 turbocharger is purpose-built for engine platforms that require counter-clockwise rotation, giving builders a high-flow ball bearing solution without compromising on packaging or plumbing layout. This unit is engineered for enthusiasts chasing strong low-end spool combined with serious top-end capability. It’s the right choice for anyone building a platform-specific setup where reverse rotation is mandatory and performance can’t be sacrificed.

Specifications

• Compressor Wheel Size: 30.8mm
• Turbine Wheel Size: 30.75mm
• Turbine Housing A/R: 1.01
• Turbine Housing Type: Undivided V-band Entry
• Bearing Type: Ball Bearing Cartridge
• Rotation: Reverse (Counter-Clockwise)
• HP Capacity: Up to 550+ hp
• Garrett P/N: 856802-5006S
• Also Known As: GTX3076R

Performance & Application

This GTX3076R Reverse Gen2 turbocharger is designed for engine platforms requiring counter-clockwise rotation, making it a critical fitment consideration for specific builds where standard rotation turbos won’t work. The ball bearing cartridge and undivided V-band turbine housing combine to deliver optimal low-end spool characteristics while supporting up to 550+ hp. This makes it well suited for performance builds seeking quick throttle response without giving up top-end power potential.

Frequently Asked Questions

What HP can the GTX3076R Reverse support?

This turbo is rated to support up to 550+ hp.

Is this a ball bearing or journal bearing turbo?

The GTX3076R Reverse uses a ball bearing cartridge design.

What is the A/R ratio of the turbine housing?

It features a 1.01 A/R undivided V-band entry turbine housing.

What does GTX3076R refer to?

GTX3076R is the model designation for this Garrett GEN2 reverse-rotation turbocharger, Garrett P/N 856802-5006S.

For builds demanding counter-clockwise rotation without sacrificing spool or top-end power, the GTX3076R Reverse Gen2 delivers a proven, high-flow ball bearing solution engineered to Garrett’s exacting standards.
