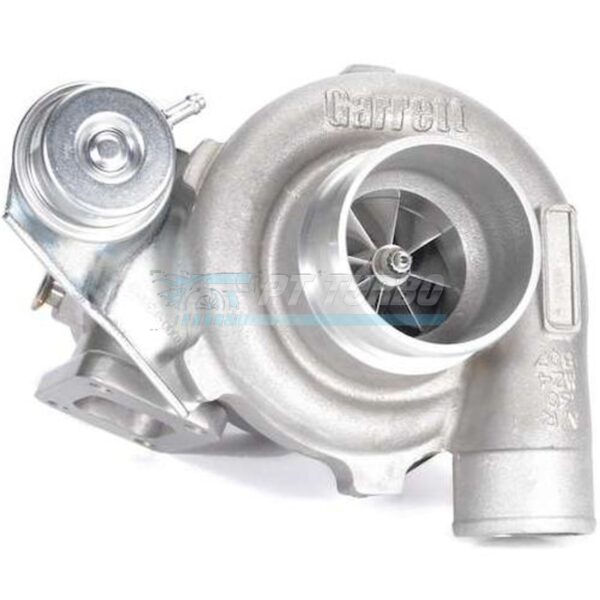

The GEN2 Garrett GTX3076R with compact compressor housing is built for enthusiasts who demand serious top-end power without sacrificing the ball bearing response that defines the GTX platform. This configuration pairs Garrett’s advanced GEN2 billet compressor wheel with a compact housing and an internally wastegated stainless turbine housing, making it a strong choice for builders targeting big horsepower on a proven GT30/GTX30 platform. It’s the right pick for enthusiasts who want GEN2 technology in a bolt-on-friendly package without stepping up to a full-size housing.
Specifications
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Compressor Housing Style: Compact
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: .86
- Turbine Housing Material: Stainless
- Turbine Housing Flange: T25, 5-Bolt
- Wastegate Configuration: Internal Wastegate (IWG)
- Actuator: 1 Bar
- Bearing System: Dual Ball Bearing
- HP Capacity: 750HP
Performance & Application
Built around Garrett’s GEN2 billet compressor wheel, this GTX3076R is engineered to deliver strong response off boost while still supporting serious top-end horsepower. The dual ball bearing center cartridge sharpens spool characteristics compared to journal bearing designs, giving drivers a quicker-building, more predictable power curve. With a compact compressor housing and internally wastegated stainless turbine housing on a T25 5-bolt flange, this configuration is suited to builders who want GEN2 performance in a package designed to bolt into existing GT30/GTX30-style turbine housing setups. It’s an excellent match for high-horsepower street and performance builds looking to push well beyond stock turbo limitations.
Compatibility & Fitment
- Fits turbine housings for Garrett GT30 (standard size) turbochargers
- Fits turbine housings for GTX30 series turbochargers
- Compatible with turbine housings featuring a 60mm inducer and 84 trim turbine wheel
Frequently Asked Questions
- What horsepower can the GEN2 GTX3076R support?
- The GEN2 billet compressor wheel is capable of supporting up to 750HP.
- Is the GTX3076R a ball bearing or journal bearing turbocharger?
- This is a dual ball bearing turbochar
