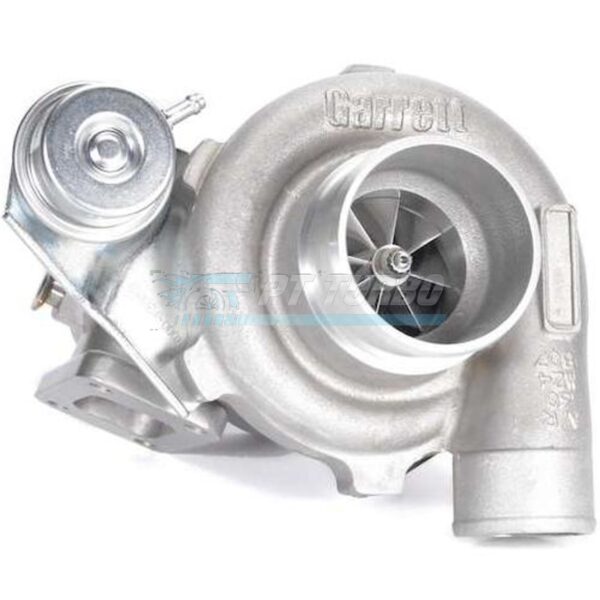

The GEN2 Garrett GTX3076R with compact compressor housing represents the pinnacle of Garrett’s advanced turbine technology, built for enthusiasts who demand serious power without sacrificing throttle response. Featuring a billet compressor wheel and dual ball bearing architecture, this turbocharger is engineered for builders chasing big numbers on a proven, race-ready platform. Whether upgrading a stock turbo or building a dedicated high-horsepower setup, this unit delivers the durability and performance Garrett is known for.
Specifications
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: .64
- Turbine Housing Material: Stainless
- Turbine Housing Flange: T25 IWG 5 Bolt
- Bearing Type: Dual Ball Bearing
- HP Capacity: 750HP
- Actuator: 1 Bar
Performance & Application
This GEN2 GTX3076R is engineered for platforms running Garrett’s GT30 standard size and GTX30 series turbine housings, making it a direct fit for builders already invested in that architecture. The billet compressor wheel and ball bearing construction deliver qu
