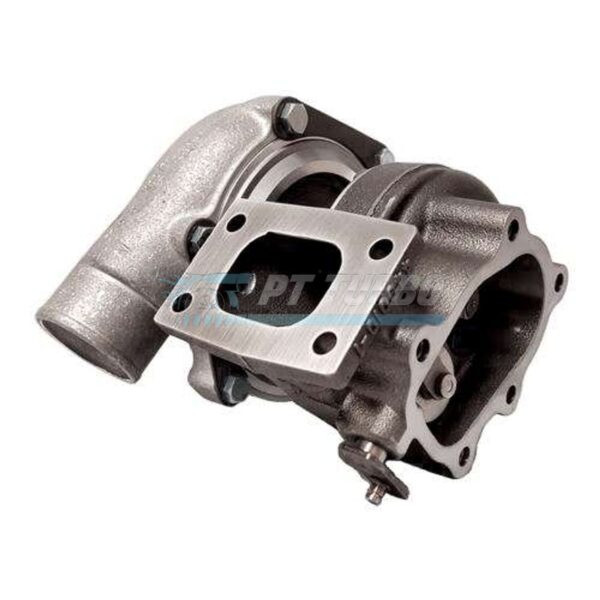

GEN2 - Garrett GTX2867R Turbo with .86 A/R Int W/G T25 Garrett Turbine Housing

GEN2 – Garrett GTX2867R Turbo with .86 A/R Int W/G T25 Garrett Turbine Housing

$1,810.34

Dual ball bearing turbo with advanced GEN2 billet compressor wheel rated for 550HP. Features 50/67mm compressor (0.60 A/R), 54/47mm turbine (0.86 A/R), T25 inlet, GT28-style outlet, and internal wastegate turbine housing.

Specifications

  • Compressor Wheel Inducer: 50mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 55
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
  • Turbine Housing A/R: .86
  • Bearing Type: Dual Ball Bearing
  • Compressor Inlet: T25 Inlet
  • Compressor Outlet: 5 Bolt (GT28 Style) Outlet
  • Turbine Housing Design: Internal Wastegate
  • HP Capacity: 550HP
Weight 20 lbs
