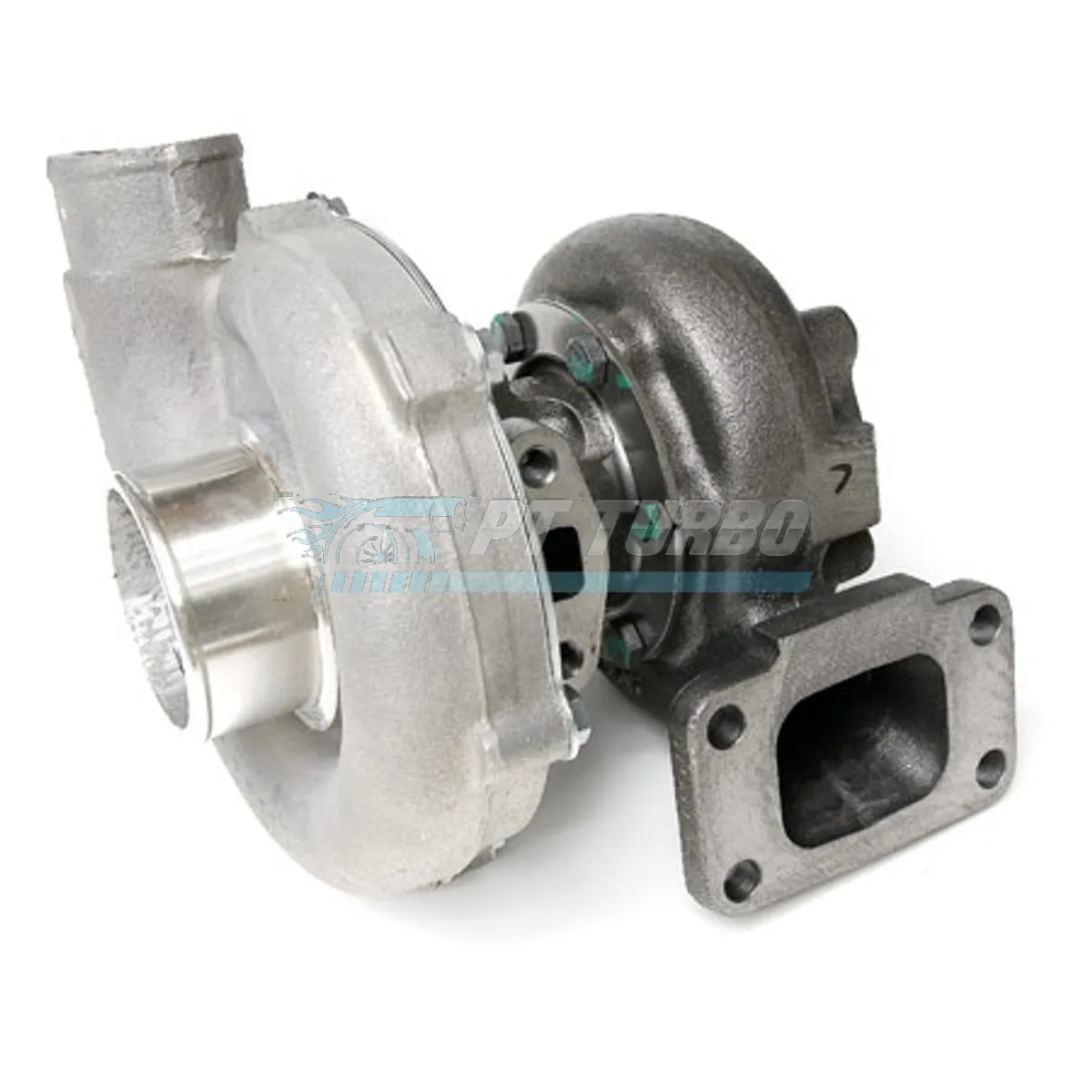

Garrett Turbocharger, T3/T4E, 60Trim Compressor, StageIIITurbine

The Garrett T3/T4E Turbocharger with 60 Trim Compressor and Stage III Turbine is a proven hybrid combination built for enthusiasts who want serious power gains without the complexity of a water-cooled system. Factory assembled and balanced by Garrett, this unit delivers the reliability of an OEM component while offering the aftermarket flexibility performance builders demand. It’s a common-use turbo trusted across a wide variety of engine platforms for those chasing big numbers with a dependable core.

Specifications

• Compressor Wheel Trim: 60 Trim
• Turbine: Stage III
• Turbine Discharge: T3, 4-Bolt (2.5″) Discharge
• Bearing Type: Journal Bearing
• Cooling: Oil-Cooled Only (No Water Lines Required)
• HP Capacity: Up to 500 Crank HP
• Turbine Housing A/R Options: Standard, .63 A/R, .82 A/R, .72 A/R (Special T25 EWG-44), .72 A/R (For Cosworth Housing), 1.06 A/R (Only Available with Divided T3 Housing Option)
• Turbine Housing Configuration Options: Standard, T3/T4 5-Bolt (Ford Style) Discharge (Only .63 or .82 Available), Special Turbine Housing T25-EWG-44, Special Turbine Housing – Cosworth Style T3 Inlet with 3-Bolt Outlet, T3 4-Bolt Standard, T31 V-Band Housing (T3 Inlet Flange and T31 V-Band Exit)
