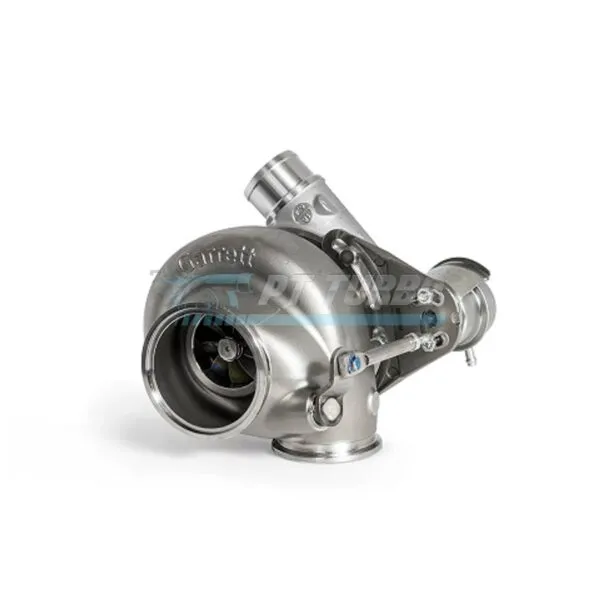

Garrett Turbocharger G-Series II G35-990, 0.83 A/R V-Band / V-Band IWG, P/N: 934124-5001S

Garrett Turbocharger G-Series II G35-990, 0.83 A/R V-Band / V-Band IWG, P/N: 934124-5001S

$3,374.94

G35-990: up to 10% higher compressor flow than Gen I, featuring 0.83 A/R turbine, Mar-M wheel rated to 1050°C, and V-Band inlet/outlet configuration (P/N 934124-5001S). Direct upgrade for existing Gen I platforms with standard or reverse rotation options.

Specifications

  • Frame Size / Model: G35-990
  • A/R Ratio: 0.83
  • Turbine Housing Flange: V-Band / V-Band IWG (Internal Wastegate)
  • Turbine Wheel Material: Mar-M alloy, rated up to 1050° C

Wheels and rating

  • Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim
  • Compressor housing: 0.72 A/R
  • Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim
  • Garrett’s rating: 550 to 990 hp, for engines of 2.0 to 5.5 liters

Figures from Garrett’s G-Series II product guide for part number 934124-5001S.

Downloads

Weight 20 lbs
