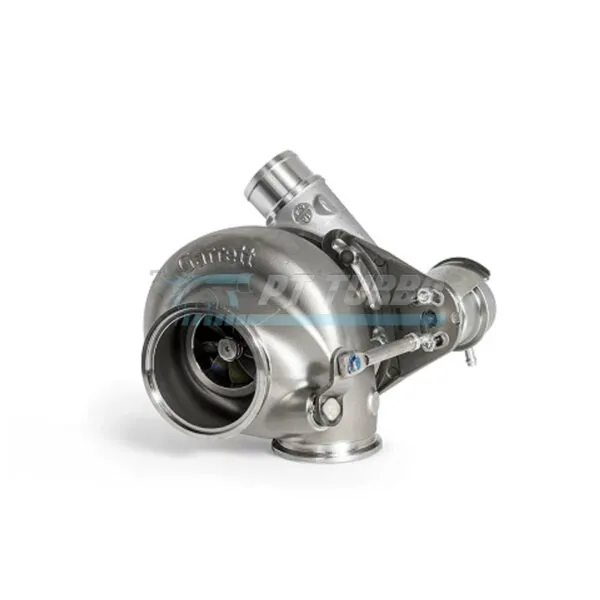

Garrett Turbocharger G-Series II G30-825, 1.01 A/R V-Band / V-Band IWG, P/N: 934118-5004S

Garrett Turbocharger G-Series II G30-825, 1.01 A/R V-Band / V-Band IWG, P/N: 934118-5004S

$3,150.47

Garrett’s G30-825 (P/N 934118-5004S): up to 825 hp with compressor aero for 10% higher flow than Gen I, featuring 1.01 A/R V-Band inlet/outlet and integral wastegate. Mar-M turbine wheel handles 1050°C with direct Gen I housing compatibility.

Specifications

  • Model: G30-825
  • A/R Ratio: 1.01
  • Turbine Housing Configuration: V-Band / V-Band IWG (Internal Wastegate)
  • Garrett P/N: 934118-5004S
  • Compressor & Turbine Housings: Utilizes Gen I compressor and turbine housings

Wheels and rating

  • Compressor wheel: 58 mm inducer, 71 mm exducer, 65 trim
  • Compressor housing: 0.72 A/R
  • Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
  • Garrett’s rating: 475 to 825 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934118-5004S.

Downloads

Weight 20 lbs
