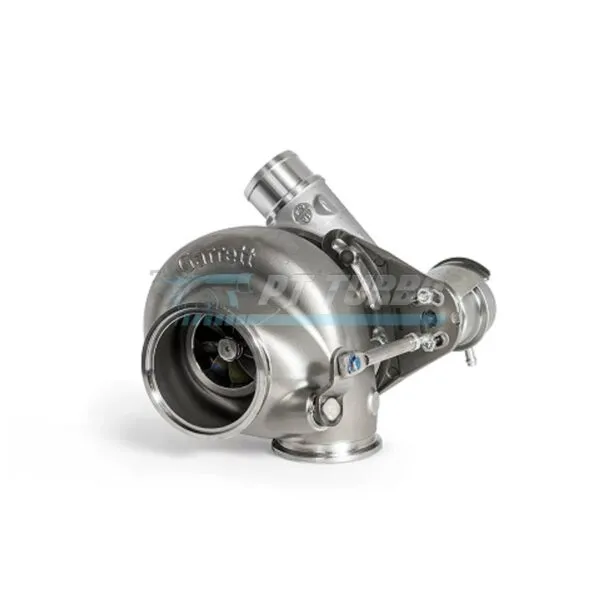

Garrett Turbocharger G-Series II G30-725, 1.01 A/R V-Band / V-Band IWG, P/N: 934118-5002S

Wheels and rating

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Garrett’s rating: 350 to 725 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934118-5002S.

What changed with G-Series II

• New compressor aerodynamics: up to 10% more compressor flow than the first G-Series at peak pressure ratio and peak turbo speed
• Better efficiency at high flow rates
• Same compressor and turbine housings as the first generation, so it is a direct upgrade for a first-generation G-Series turbo
• Mar-M alloy turbine wheel and stainless steel turbine housing, both rated to 1050°C

The engine needs a new calibration (tune) to turn the extra airflow into horsepower. Garrett builds the G-Series II in standard and reverse rotation; check the part number against your setup before ordering.

Downloads

• Garrett-G-Series-II-Product Flyer
