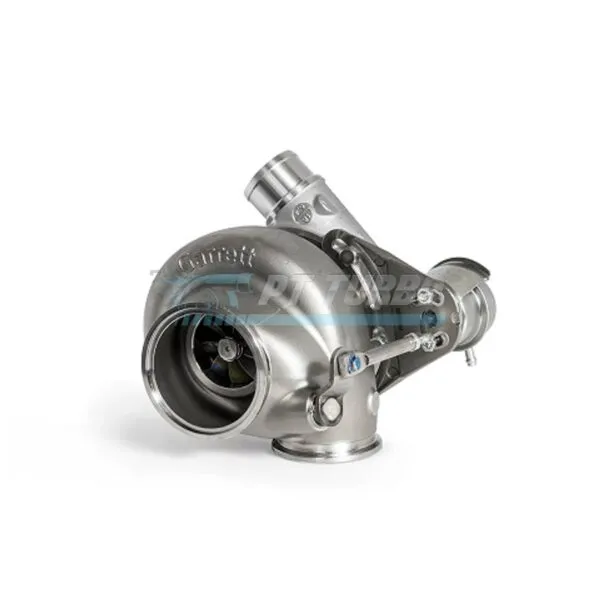

Garrett Turbocharger G-Series II G30-725, 0.83 A/R V-Band / V-Band IWG, P/N: 934118-5001S

Specifications

• A/R Ratio: 0.83
• Turbine Housing Configuration: V-Band / V-Band Internal Wastegate (IWG)
• Turbine Wheel Material: Mar-M alloy, rated up to 1050°C
• Turbine Housing Material: Stainless steel, rated up to 1050°C
• Rotation: Standard and reverse rotation configurations available

Wheels and rating

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Garrett’s rating: 350 to 725 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934118-5001S.

Matching parts (sold separately)

• Inlet V-Band Flange (For Turbo Manifold)
• Outlet V-Band Flange (For Down-pipe)
• Oil Drain Flange

Call (909) 824-1020 and we add the matching flange to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
