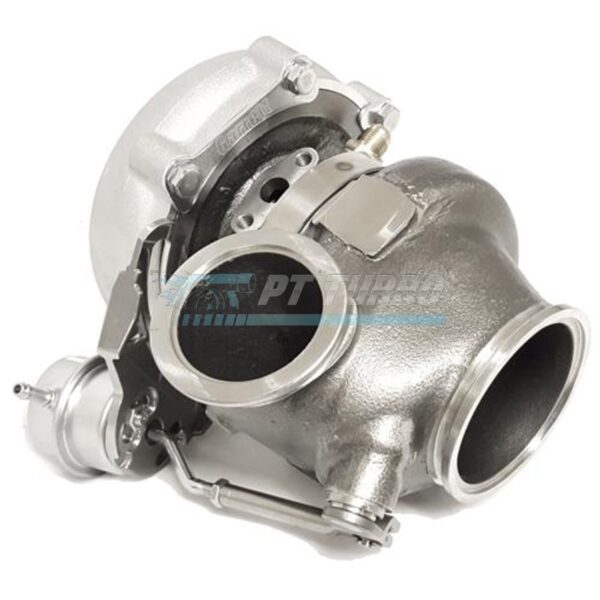

The Garrett G25-700 G-Series II represents the next evolution of one of the most trusted turbocharger platforms in performance and motorsport applications. Built for enthusiasts and tuners who demand more from a proven design, this .92 A/R V-Band unit with integrated wastegate delivers refined aerodynamics without sacrificing the durability that made the original G-Series a benchmark. It’s the ideal choice for builders looking to maximize flow and efficiency while retaining a familiar, race-proven housing platform.

Specifications

• Model: G25-700
• A/R Ratio: .92
• Inlet Configuration: V-Band
• Wastegate Configuration: V-Band Internal Wastegate (IWG)
• Turbine Wheel Material: Mar-M alloy
• Turbine Wheel Temperature Rating: Up to 1050°C
• Turbine Housing Material: Stainless steel
• Turbine Housing Temperature Rating: Up to 1050°C
• Rotation: Standard and reverse rotation configurations available
• Inlet V-Band Flange (Turbo Manifold Side) P/N: ATP-FLS-350
• Outlet V-Band Flange (Down-Pipe Side) P/N: ATP-FLS-351
• Oil Drain Flange P/N: ATP-FLA-010
• Oil Drain Gasket P/N: GRT-GSK-008
• Oil Drain Fasteners P/N: MIA-FST-034
• Boost Pressure Port Fitting P/N: ATP-FTG-198
• Speed Sensor Kit P/N: ATP-ACS-032
• Garrett P/N: 934076-5006S

Performance & Application

The G25-700 G-Series II utilizes Gen I compressor and turbine housings while incorporating new compressor aero technology that increases both power and performance. Compared to the original G-Series Gen I, this unit delivers up to 10% higher compressor flow at peak pressure ratio and peak turbo RPM, along with increased efficiency at high flow rates. Calibration is required to fully take advantage of this increased flow for a horsepower upgrade. This platform serves as a direct upgrade path for existing Gen I customers, available as a complete turbo unit, supercore, or CHRA-only purchase.

Frequently Asked Questions

What is the A/R ratio of the G25-700 V-Band IWG?

This turbocharger is configured with a .92 A/R ratio.

What material is the turbine wheel made from, and what temperature can it withstand?

The turbine wheel is constructed from Mar-M alloy and is rated up to 1050°

Downloads

• Garrett-G-Series-II-Product Flyer
