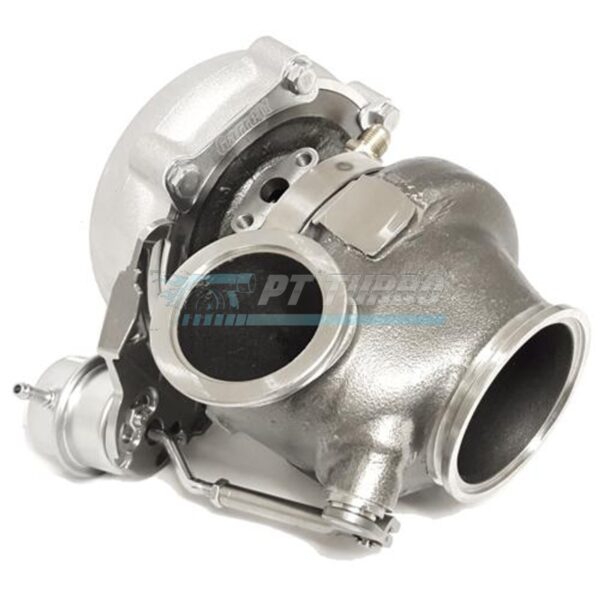

Garrett Turbocharger G-Series II G25-585, .92 A/R V-Band / V-Band IWG, P/N: 934076-5003S

Specifications

• A/R Ratio: .92
• Turbine Inlet Flange: V-Band
• Turbine Outlet Flange: V-Band
• Wastegate Configuration: Internal Wastegate (IWG)

Wheels and rating

• Compressor wheel: 48 mm inducer, 60 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Garrett’s rating: 300 to 585 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934076-5003S.

Downloads

• Garrett-G-Series-II-Product Flyer
