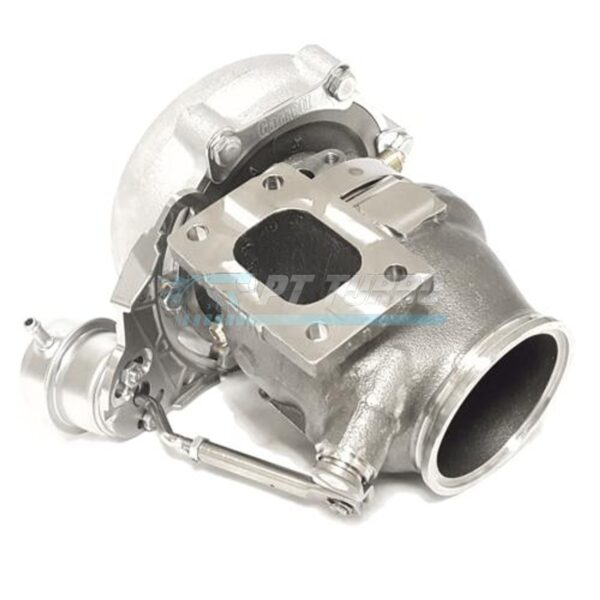

Garrett Turbocharger G-Series II G25-585 .49 A/R T25 / V-Band IWG, P/N: 934076-5001S

Specifications

• Model: G25-585
• A/R Ratio: .49
• Turbine Housing Flange: T25
• Wastegate Configuration: V-Band Internal Wastegate (IWG)
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C
• Turbine Housing Material: Stainless steel, rated up to 1050° C
• Rotation: Standard and reverse rotation configurations available

Wheels and rating

• Compressor wheel: 48 mm inducer, 60 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Garrett’s rating: 300 to 585 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934076-5001S.

Matching parts (sold separately)

• Inlet V-Band Flange (For Turbo Manifold)
• Outlet V-Band Flange (For Down-pipe)
• Oil Drain Flange
• Oil Drain Gasket
• Oil Drain Fasteners
• Boost Pressure Port Fitting

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
