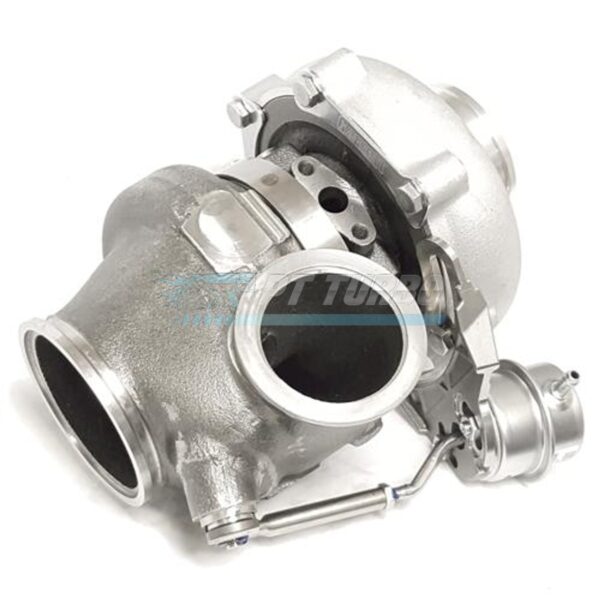

Garrett Turbo G-Series II G25-700, Reverse Rotation, .92 A/R V-Band / V-Band IWG, P/N: 934115-5004S

Garrett Turbo G-Series II G25-700, Reverse Rotation, .92 A/R V-Band / V-Band IWG, P/N: 934115-5004S

$3,071.19

G25-700 reverse rotation with 0.92 A/R V-Band configuration: up to 10% higher compressor flow than Gen I models, featuring Mar-M turbine wheel rated to 1050°C. Direct upgrade path utilizing existing Gen I housings. P/N: 934115-5004S.

Specifications

  • Model: G25-700
  • Rotation: Reverse Rotation
  • A/R Ratio: 0.92
  • Flange Type: V-Band / V-Band IWG (Integrated Wastegate)
  • Turbine Wheel Material: Mar-M alloy, rated up to 1050° C

Wheels and rating

  • Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
  • Compressor housing: 0.70 A/R
  • Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
  • Garrett’s rating: 350 to 700 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934115-5004S.

Downloads

Weight 20 lbs
