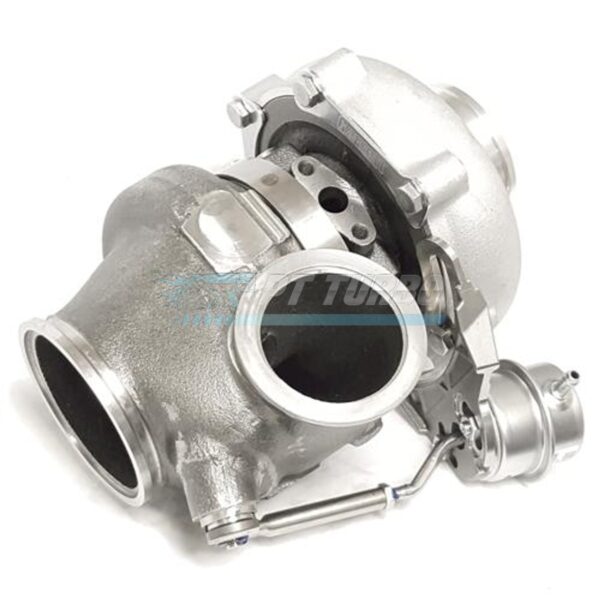

Garrett Turbo G-Series II G25-700, Reverse Rotation, .72 A/R V-Band / V-Band IWG, P/N: 934115-5003S

Garrett Turbo G-Series II G25-700, Reverse Rotation, .72 A/R V-Band / V-Band IWG, P/N: 934115-5003S

$3,071.19

G-Series II reverse rotation turbo (P/N: 934115-5003S) with 0.72 A/R V-Band configuration and integrated wastegate. Features 10% higher compressor flow than Gen I, Mar-M turbine wheel rated to 1050°C, and ball bearing construction.

Specifications

  • Model: G25-700
  • Rotation: Reverse Rotation
  • A/R Ratio: .72
  • Turbine Housing Configuration: V-Band / V-Band IWG
  • Turbine Wheel Material: Mar-M alloy

Wheels and rating

  • Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
  • Compressor housing: 0.70 A/R
  • Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
  • Garrett’s rating: 350 to 700 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934115-5003S.

Downloads

Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett Turbo G-Series II G25-700, Reverse Rotation, .72 A/R V-Band / V-Band IWG, P/N: 934115-5003S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G25-700

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
