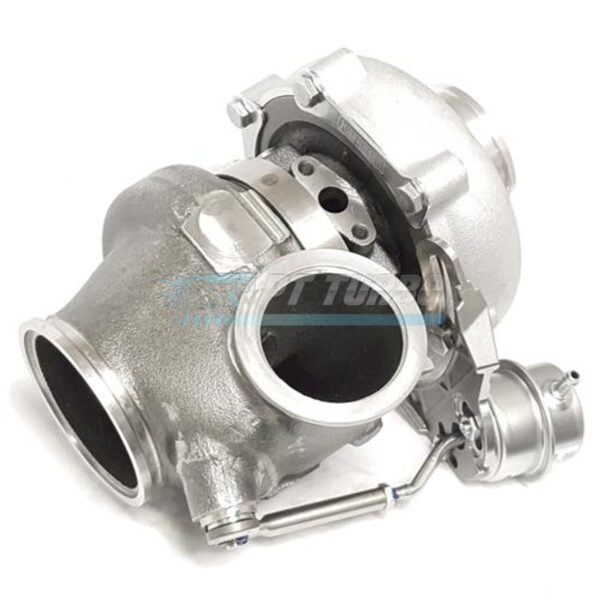

Garrett Turbo G-Series II G25-585 Reverse Rotation, .72 A/R V-Band / V-Band IWG, P/N: 934115-5001S

Specifications

• A/R Ratio: .72
• Rotation: Reverse Rotation
• Inlet Configuration: V-Band
• Outlet Configuration: V-Band IWG
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C
• Turbine Housing Material: Stainless steel, rated up to 1050° C
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM

Wheels and rating

• Compressor wheel: 48 mm inducer, 60 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Garrett’s rating: 300 to 585 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934115-5001S.

Matching parts (sold separately)

• Inlet V-Band Flange (For Turbo Manifold)
• Outlet V-Band Flange (For Down-pipe)

Call (909) 824-1020 and we add the matching flange to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
