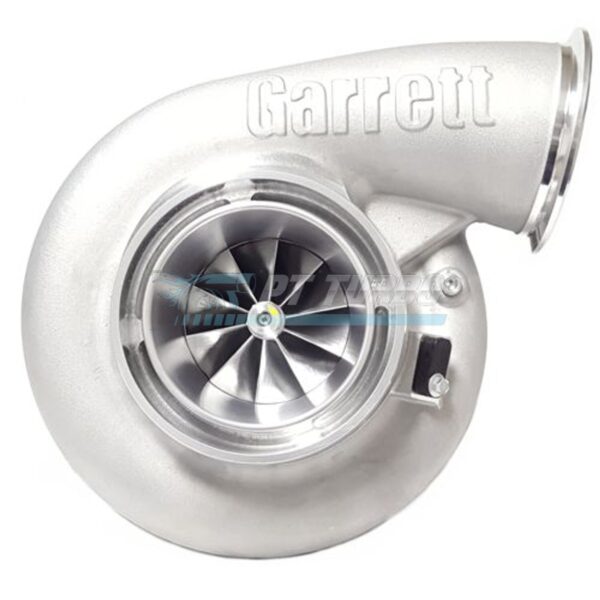

Garrett Supercore – G-Series II G45-1610, P/N: 938339-5004S

Specifications

• Model: G45-1610
• Garrett P/N: 938339-5004S
• Turbine Wheel Material: Mar-M alloy
• Turbine Wheel Temperature Rating: Up to 1050° C
• Turbine Housing Material: Stainless steel
• Turbine Housing Temperature Rating: Up to 1050° C
• Rotation Configurations: Standard and reverse rotation available
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Housing Compatibility: Utilizes Gen I compressor and turbine housings

Wheels and rating

• Compressor wheel: 79 mm inducer, 98 mm exducer, 65 trim
• Turbine wheel: 89 mm inducer, 82 mm exducer, 84 trim
• Garrett’s rating: 750 to 1610 hp, for engines of 2.0 to 8.0 liters

Figures from Garrett’s catalog page for the G-Series II G45-1610 for part number 938339-5004S.

Matching parts (sold separately)

• Compatible Speed Sensor Kit

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer G40 42 45
