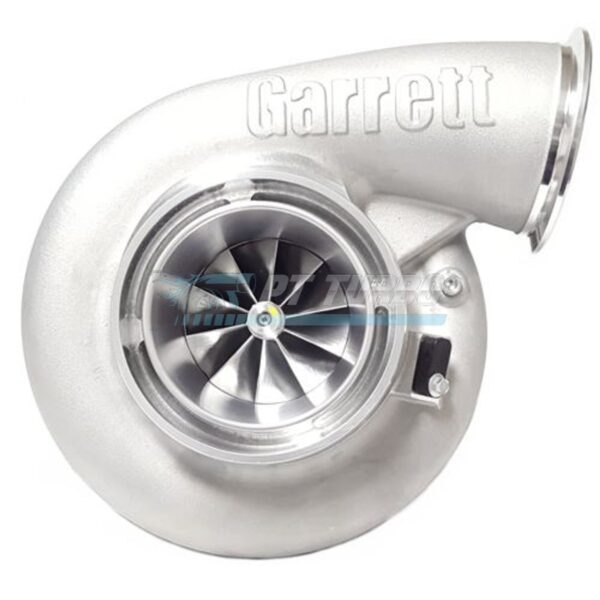

Garrett Supercore – G-Series II G42-1585, P/N: 938339-5003S

Specifications

• Compatible Housings: G-Series II utilizes Gen I compressor and turbine housings
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Rotation Configurations: Standard and reverse rotation configurations available
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C
• Turbine Housing Material: Stainless steel, rated up to 1050° C
• Garrett P/N: 938339-5003S

Wheels and rating

• Compressor wheel: 79 mm inducer, 98 mm exducer, 65 trim
• Turbine wheel: 82 mm inducer, 75 mm exducer, 84 trim
• Garrett’s rating: 475 to 1585 hp, for engines of 2.0 to 7.0 liters

Figures from Garrett’s catalog page for the G-Series II G42-1585 for part number 938339-5003S.

Matching parts (sold separately)

• Compatible Speed Sensor Kit

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer G40 42 45
