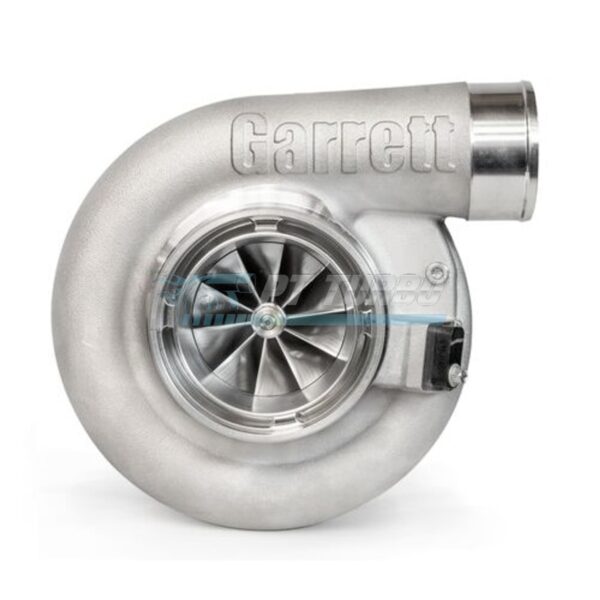

Garrett Supercore – G-Series II G40-1250, P/N: 938272-5002S

Specifications

• Garrett P/N: 938272-5002S
• Product Type: Supercore
• Compressor Flow: Up to 10% higher than G-Series Gen I at peak pressure ratio and peak turbo RPM
• Turbine Wheel Material: Mar-M alloy, rated up to 1050°C
• Turbine Housing Material: Stainless steel, rated up to 1050°C
• Rotation Configurations: Standard and reverse rotation available
• Housing Compatibility: Utilizes Gen I compressor and turbine housings
• Calibration: Required to take advantage of increased flow for a horsepower upgrade

Wheels and rating

• Compressor wheel: 71 mm inducer, 88 mm exducer, 65 trim
• Turbine wheel: 77 mm inducer, 70 mm exducer, 84 trim
• Garrett’s rating: 500 to 1250 hp, for engines of 2.0 to 6.0 liters

Figures from Garrett’s catalog page for the G-Series II G40-1250 for part number 938272-5002S.

Matching parts (sold separately)

• Speed Sensor Kit

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer G40 42 45
