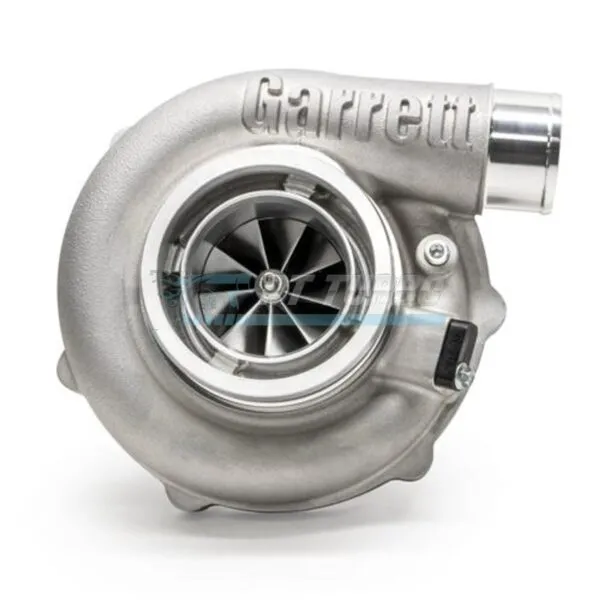

Garrett Supercore - G-Series II G35-990, P/N: 934123-5001S

Garrett Supercore – G-Series II G35-990, P/N: 934123-5001S

$2,285.60

G35-990 supercore (P/N 934123-5001S): up to 10% higher compressor flow than Gen I with new aero technology, Mar-M turbine wheel rated 1050°C, and stainless steel housing. Direct upgrade path for Gen I platforms; available in standard and reverse rotation configurations. Calibration required.

Specifications

  • Product Line: G-Series II G35-990
  • Garrett P/N: 934123-5001S
  • Turbine Wheel Material: Mar-M alloy
  • Turbine Wheel Max Temperature Rating: 1050° C
  • Turbine Housing Material: Stainless steel
  • Turbine Housing Max Temperature Rating: 1050° C

Wheels and rating

  • Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim
  • Compressor housing: 0.72 A/R
  • Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim
  • Garrett’s rating: 550 to 990 hp, for engines of 2.0 to 5.5 liters

Figures from Garrett’s G-Series II product guide for part number 934123-5001S.

Downloads

Weight 20 lbs
