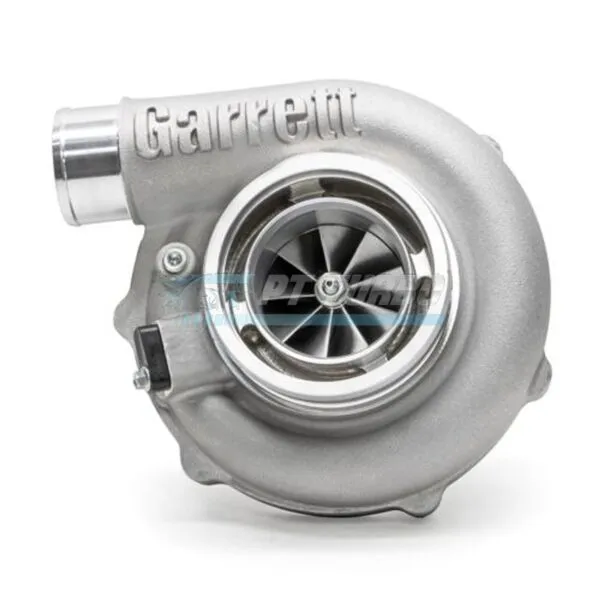

Garrett Supercore – G-Series II G30-825 Reverse Rotation, P/N: 934121-5002S

Specifications

• Garrett P/N: 934121-5002S
• Product Line: G-Series II G30-825
• Rotation: Reverse Rotation (RR)
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C
• Turbine Housing Material: Stainless steel, rated up to 1050° C
• Housing Compatibility: Utilizes Gen I compressor and turbine housings
• Compressor Flow Gain: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM

Wheels and rating

• Compressor wheel: 58 mm inducer, 71 mm exducer, 65 trim
• Compressor housing: 0.72 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Garrett’s rating: 475 to 825 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934121-5002S.

Matching parts (sold separately)

• Inlet V-Band Flange (For Turbo Manifold)
• Outlet V-Band Flange (For Down-pipe)
• Oil Drain Flange

Call (909) 824-1020 and we add the matching flange to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
