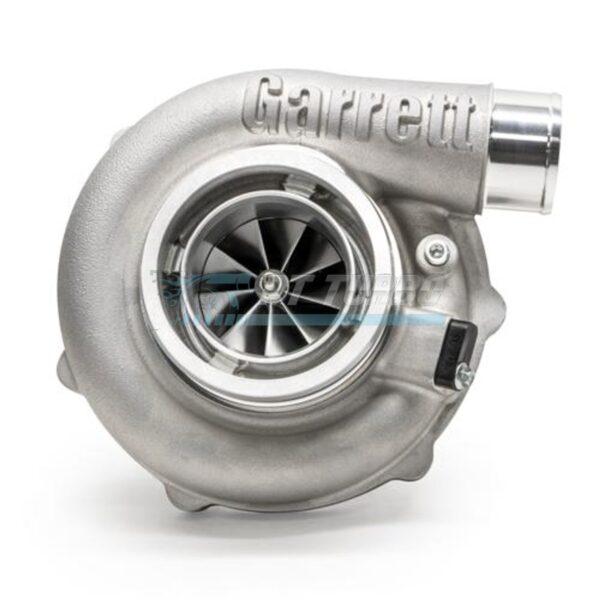

Garrett Supercore – G-Series II G30-825, P/N: 934117-5002S

Specifications

• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Housing Compatibility: Utilizes Gen I compressor and turbine housings

Wheels and rating

• Compressor wheel: 58 mm inducer, 71 mm exducer, 65 trim
• Compressor housing: 0.72 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Garrett’s rating: 475 to 825 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934117-5002S.

Downloads

• Garrett-G-Series-II-Product Flyer
