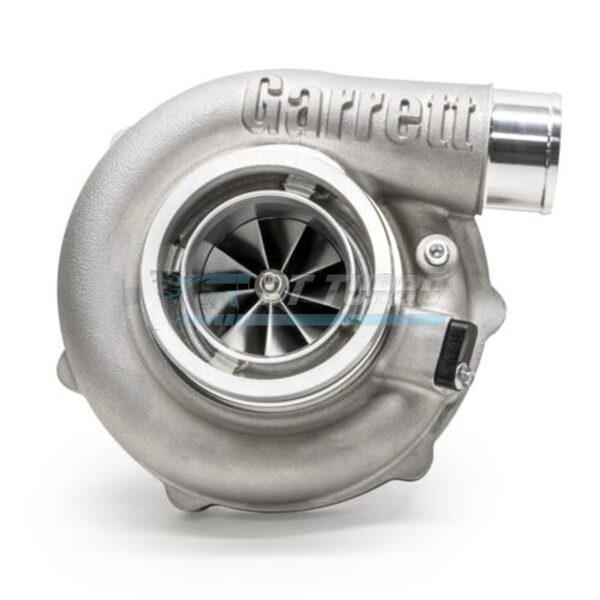

Garrett Supercore – G-Series II G30-725, P/N: 934117-5001S

Specifications

• Garrett P/N: 934117-5001S
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Housing Compatibility: Utilizes Gen I compressor and turbine housings
• Rotation Configurations: Standard and reverse rotation available
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C
• Turbine Housing Material: Stainless steel, rated up to 1050° C

Wheels and rating

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Garrett’s rating: 350 to 725 hp, for engines of 2.0 to 3.5 liters

Figures from Garrett’s G-Series II product guide for part number 934117-5001S.

Matching parts (sold separately)

• Inlet V-Band Flange (For Turbo Manifold)
• Outlet V-Band Flange (For Down-pipe)
• Oil Drain Flange
• Oil Drain Gasket
• Oil Drain Fasteners
• Boost Pressure Port Fitting
• Speed Sensor Kit

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
