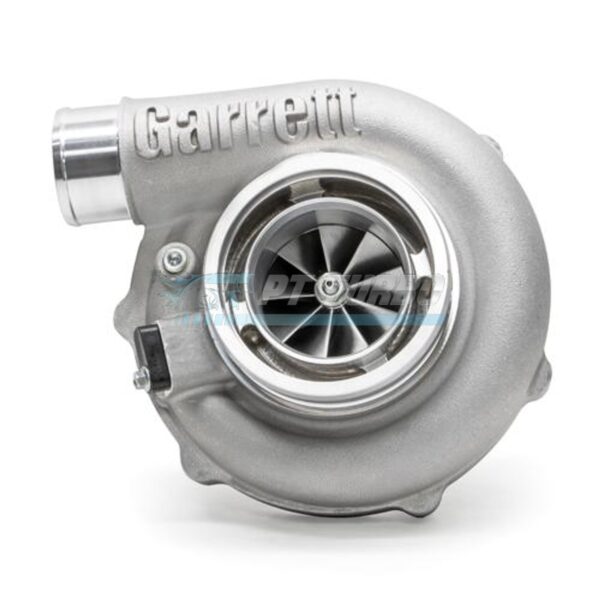

Garrett Supercore - G-Series II G25-700 Reverse Rotation, P/N: 934114-5002S

Garrett Supercore – G-Series II G25-700 Reverse Rotation, P/N: 934114-5002S

$2,148.37

G25-700 reverse rotation supercore with compressor aerodynamics: up to 10% higher flow versus Gen I at peak pressure ratio. Mar-M turbine wheel rated to 1050°C, stainless steel housing, compatible Gen I housings. P/N 934114-5002S.

Specifications

  • Model: G-Series II G25-700
  • Rotation: Reverse Rotation (RR)

Wheels and rating

  • Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
  • Compressor housing: 0.70 A/R
  • Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
  • Garrett’s rating: 350 to 700 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934114-5002S.
