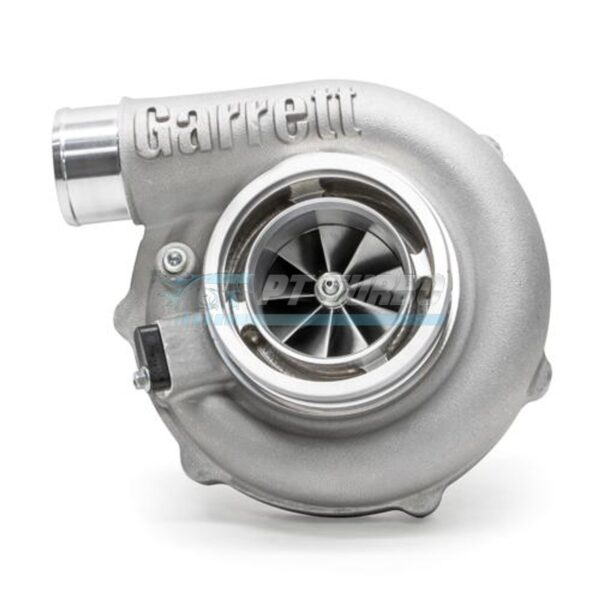

Garrett Supercore – G-Series II G25-585 Reverse Rotation, P/N: 934114-5001S

Specifications

• Configuration: Reverse Rotation
• Compressor Flow: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Turbine Wheel Material: Mar-M alloy, rated up to 1050°C
• Turbine Housing Material: Stainless steel, rated up to 1050°C
• Housing Compatibility: Utilizes Gen I compressor and turbine housings
• Garrett P/N: 934114-5001S

Wheels and rating

• Compressor wheel: 48 mm inducer, 60 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Garrett’s rating: 300 to 585 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934114-5001S.

Downloads

• Garrett-G-Series-II-Product Flyer
