Garrett Supercore - G-Series II G25-585, P/N: 934075-5001S

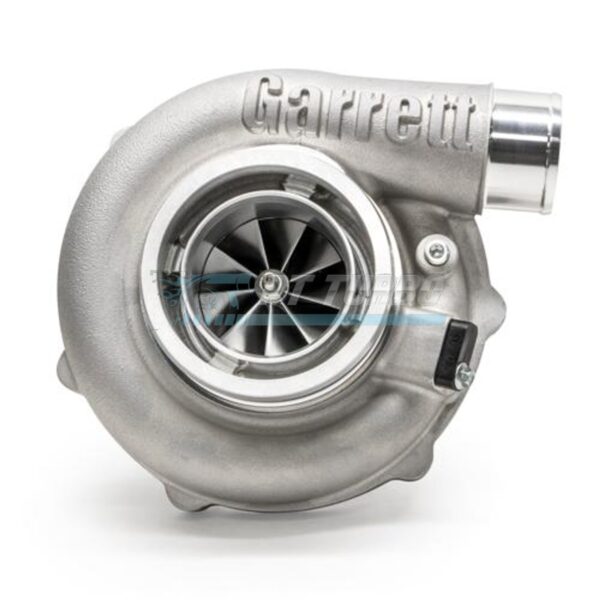

Garrett Supercore – G-Series II G25-585, P/N: 934075-5001S

$1,937.14

G25-585 supercore with compressor aerodynamics: up to 10% higher flow versus Gen I at peak pressure ratio. Mar-M turbine wheel rated to 1050°C, stainless steel housing, available in standard/reverse rotation. Direct upgrade for Gen I customers (P/N: 934075-5001S).

Specifications

  • Turbine Wheel Material: Mar-M alloy, rated up to 1050°C

Wheels and rating

  • Compressor wheel: 48 mm inducer, 60 mm exducer, 65 trim
  • Compressor housing: 0.70 A/R
  • Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
  • Garrett’s rating: 300 to 585 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934075-5001S.

Downloads

Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett Supercore – G-Series II G25-585, P/N: 934075-5001S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G25-585

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
