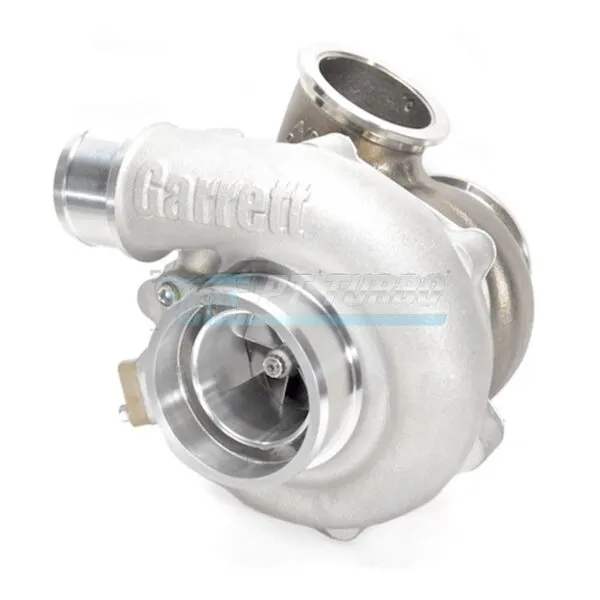

The Garrett G25-550 Reverse Rotation turbocharger is engineered for enthusiasts who demand serious power density without sacrificing packaging flexibility. Paired with a stainless steel V-band turbine housing, this ball bearing small-frame unit is built for platforms where reverse rotation and compact sizing are non-negotiable. It’s the choice for builders who need proven Garrett G-Series aerodynamics backed by a housing configuration engineered for real-world installation demands.
Specifications
- Compressor Wheel Inducer: 48mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
- Turbine Wheel Material: Mar-M Alloy, 1050 Celsius Rating
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Turbine Housing A/R: .92
- Bearing Type: Ball Bearing
- Rotation: Reverse Rotation
- HP Capacity: 550HP
- Garrett P/N: 871390-5005S
- Alternate P/N: 871399-5001S
- Alternate P/N: 740902-0074
Performance & Application
The G25-550 delivers up to 550HP from a small frame package, making it a strong candidate for builds where compact turbo sizing and high output must coexist. Its Ultra High Flow G-Series compressor wheel is paired with an evolutionary aero G-Series turbine wheel, giving this unit the aerodynamic pedigree Garrett’s G-Series is known for. The reverse rotation configuration and V-band turbine housing make this turbo well suited for installations requiring specific orientation and clamping solutions rather than traditional flanged housings. Its Mar-M alloy turbine wheel construction supports sustained high-heat operation for demanding performance applications.
What’s Included
- Oil Feed (1mm) Restrictor Fitting to -4AN
- Two Coolant Fittings to -6AN
- Turbine Housing Inlet & Outlet V-Band Clamps
Frequently Asked Questions
- What HP can the G25-550 support?
- The G25-550 is capable of delivering up to 550HP from its small-frame package.
- Is this a
