Garrett GTX4508R-C (80mm/108mm) compact GT42 Frame Comp Hsg W/ TiAl 1.30 A/R Stainless V-Band

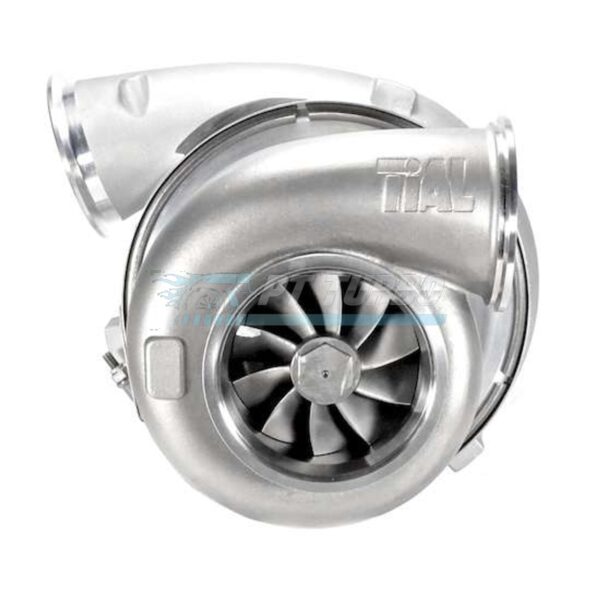

Garrett GTX4508R-C (P/N 800270-5001S): 1400HP capability with 108mm compressor and 87mm turbine wheels on compact GT42 frame. Ball bearing construction, 0.69 A/R compressor housing, and 1.30 A/R TiAL stainless V-band turbine housing with direct bolt-in fitment.

Specifications

• Compressor Wheel Exducer: 108.0mm
• Compressor Wheel Inducer: 79.8mm
• Compressor Trim: 55
• Compressor Housing A/R: .69
