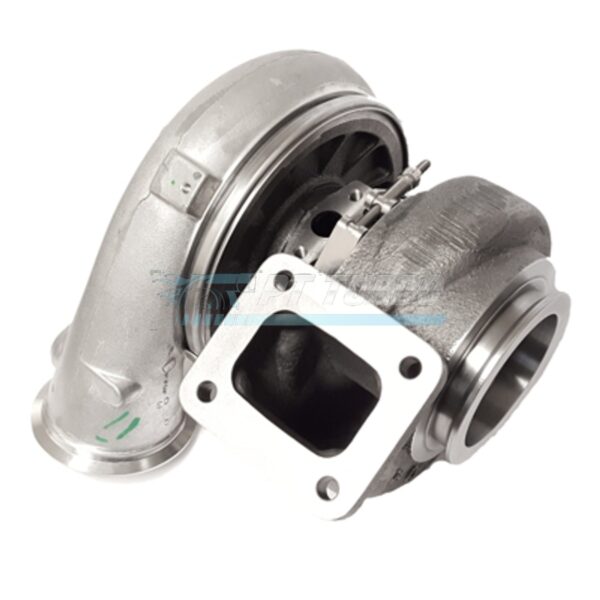

Garrett GTX4202R – 76mm Ball Bearing – 1.44 AR T4 Un-Divided Turbine Housing

The Garrett GTX4202R 76mm ball bearing turbocharger is engineered for serious performance builds demanding massive top-end airflow without sacrificing durability. Built on the large GT42R frame with a high-flowing compressor housing, this turbo is the choice for enthusiasts and builders targeting four-digit horsepower goals. Its ball bearing core and ported shroud compressor design make it a proven platform for extreme, high-boost applications.

Specifications

• Compressor Wheel Inducer: 75.8mm
• Compressor Wheel Exducer: 102.3mm
• Compressor Wheel Trim: 55
• Compressor Housing: 60 A/R, GT42R Frame, 5″ Inlet, V-Band 4.5″ OD (3.5″ ID) Outlet
• Turbine Wheel Inducer: 82mm
• Turbine Wheel Exducer: 75.1mm
• Turbine Wheel Trim: 84 trim
• Turbine Housing: 1.44 A/R, T4 Un-Divided Inlet, 4″ V-Band Outlet
• Bearing Type: Ball Bearing
• HP Capacity: Supports over 1,100HP

Performance & Application

This turbocharger is designed for high-horsepower builds where large-frame airflow and ball bearing responsiveness are non-negotiable. The built-in ported shroud (anti-surge) technology extends the usable compressor map, improving stability at high boost while resisting surge under aggressive tuning conditions. The T4 un-divided turbine inlet paired with a V-band outlet delivers efficient exhaust flow for setups pushing well past 1,100 horsepower. This is a large-frame turbo best suited for dedicated, high-output performance applications rather than mild street builds.

Frequently Asked Questions

What HP can the GTX4202R support?

The GTX4202R supports over 1,100HP.

Is this a ball bearing or journal bearing turbo?

The GTX4202R is a ball bearing turbocharger.

What is the turbine housing A/R ratio?

The turbine housing features a 1.44 A/R with a T4 un-divided inlet and 4″ V-band outlet.

What compressor inlet and outlet does this turbo use?

The compressor housing features a 5″ inlet and a V-band outlet with a 4.5″ outer diameter ring and 3.5″ tube.

For builders chasing serious four-digit horsepower with the response benefits of ball bearing technology, the Garrett GTX4202R delivers the large-frame airflow and durability required to get there.
