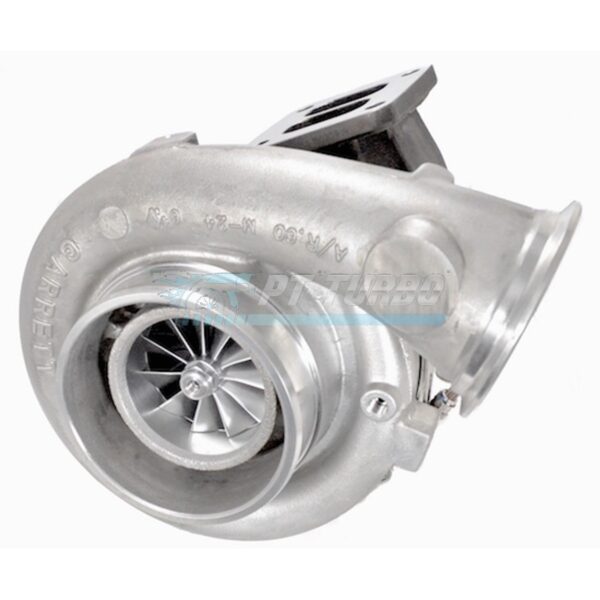

The Garrett GTX4202R is a large-frame ball bearing turbocharger built for enthusiasts chasing serious top-end power without sacrificing usable response. Engineered around Garrett’s proven GTX platform, this unit is the choice for builders who demand a high-flowing compressor and turbine combination capable of supporting big power goals reliably. It’s suited for those building a dedicated high-horsepower platform where flow capacity and durability are non-negotiable.
Specifications
- Bearing Type: Ball Bearing
- Compressor Wheel Inducer: 75.8mm
- Compressor Wheel Exducer: 102.3mm
- Compressor Wheel Trim: 55
- Compressor Housing A/R: 60
- Compressor Housing Frame: GT42R
- Compressor Housing Inlet: 5″
- Compressor Housing Outlet: V-Band, 4.5″ OD (3.5″ ID)
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75.1mm
- Turbine Wheel Trim: 84 trim
- Turbine Housing A/R: 1.44
- Turbine Housing Inlet: T4 Divided
- Turbine Housing Outlet: 4″ V-Band
- HP Capacity: Supports over 1,100HP
Performance & Application
Built with a high-flowing compressor housing featuring a built-in ported shroud for anti-surge protection, the GTX4202R is designed for builders pushing well beyond four-figure horsepower targets. The large frame compressor wheel combined with the divided turbine housing delivers strong exhaust pulse separation for improved turbine efficiency, while the ball bearing core provides sharper response compared to traditional journal bearing designs. This turbo is best suited for high-horsepower applications where V-Band connections and maximum flow capacity are required to support aggressive power levels.
Frequently Asked Questions
- What HP can the GTX4202R support?
- The GTX4202R supports over 1,100HP.
- Is this a ball bearing or journal bearing turbocharger?
- The GTX4202R is a ball bearing turbocharger.
- What is the A/R ratio of the turbine housing?
- The turbine housing uses a 1.44 A/R ratio.
- What turbine housing inlet and outlet configuration does this use?
- It features a T4 divided inlet and a 4″ V-Band outlet.
For builders targeting serious four-digit horsepower with the response and durability of a ball bearing core, the Garrett GTX4202R delivers the flow capacity and engineering pedigree to get there.
