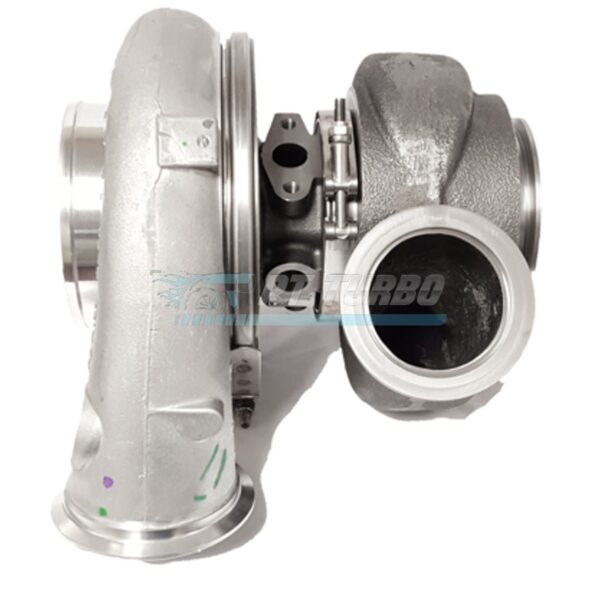

Garrett GTX4202R – 76mm Ball Bearing – 1.28 AR V-Band Turbine Housing

The Garrett GTX4202R is a large-frame ball bearing turbocharger built for enthusiasts chasing serious top-end power without sacrificing usable spool. It suits builds that demand a high-flowing compressor and turbine combination capable of supporting massive horsepower numbers, making it a top choice for dedicated performance and race applications. This is a turbo for builders who have outgrown mid-frame options and need a proven platform for extreme output.

Specifications

• Compressor Wheel Inducer: 75.8mm
• Compressor Wheel Exducer: 102.3mm
• Compressor Wheel Trim: 55
• Compressor Housing A/R: 0.60
• Compressor Frame: GT42R
• Compressor Inlet: 5″ Inlet
• Compressor Outlet: V-Band, 4.5″ OD (3.5″ ID)
• Turbine Wheel Inducer: 82mm
• Turbine Wheel Exducer: 75.1mm
• Turbine Wheel Trim: 84 trim
• Turbine Housing A/R: 1.28
• Turbine Housing Inlet: V-Band Inlet
• Turbine Housing Outlet: 4″ V-Band Outlet
• Bearing Type: Ball Bearing
• HP Capacity: Supports over 1,100HP

Performance & Application

The GTX4202R is engineered for high-output builds that require a large-frame compressor housing paired with a high-flow turbine section. Its ball bearing core design supports quick, efficient response for a turbo of this size, while the built-in ported shroud helps extend the compressor map for improved anti-surge characteristics. This configuration is best suited for serious performance and race applications where massive horsepower support is the priority. The V-Band inlet and outlet turbine housing design supports efficient exhaust flow for builds pushing well beyond four-digit horsepower figures.

Frequently Asked Questions

What HP can the GTX4202R support?

The GTX4202R supports over 1,100HP.

Is the GTX4202R a ball bearing or journal bearing turbo?

The GTX4202R is a ball bearing turbocharger.

What is the turbine housing A/R ratio?

The turbine housing features a 1.28 A/R with a V-Band inlet and a 4″ V-Band outlet.

What compressor inlet and outlet does the GTX4202R use?

The compressor housing features a 5″ inlet and a V-Band outlet with a 4.5″ outer diameter ring and 3.5″ tube.

For builders targeting extreme horsepower with a large-frame ball bearing platform, the GTX4202R delivers the flow capacity and durability needed to get there.
