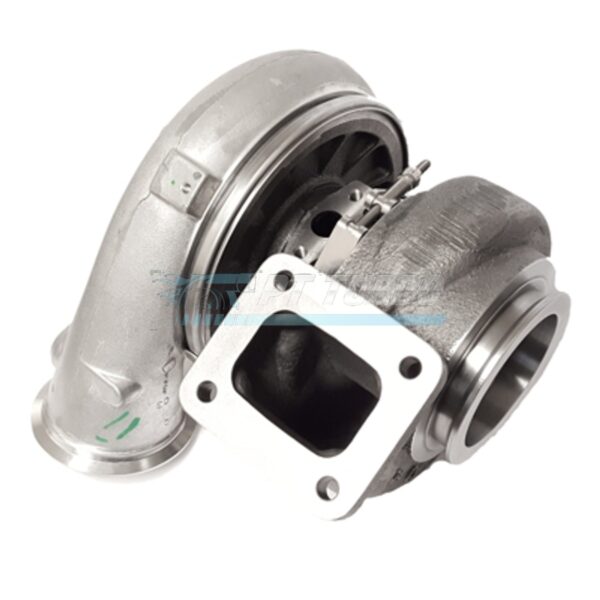

The Garrett GTX4202R is a large-frame, ball bearing turbocharger built for enthusiasts chasing serious top-end power without sacrificing a broad, usable powerband. Designed around a high-flowing compressor housing and an un-divided T4 turbine housing, it’s engineered for builders pushing well past four-figure horsepower goals. This is the turbo of choice for those who demand Garrett’s GTX-R ball bearing technology in a package capable of supporting extreme output.

Specifications

• Compressor Wheel Inducer: 75.8mm
• Compressor Wheel Exducer: 102.3mm
• Compressor Wheel Trim: 55
• Compressor Housing A/R: 60 A/R
• Compressor Housing Frame: GT42R Frame
• Compressor Inlet: 5″
• Compressor Outlet: V-Band, 4.5″ OD (3.5″ ID)
• Compressor Housing Feature: Built-in ported shroud (anti-surge)
• Turbine Wheel Inducer: 82mm
• Turbine Wheel Exducer: 75.1mm
• Turbine Wheel Trim: 84 trim
• Turbine Housing A/R: 1.28 A/R
• Turbine Housing Inlet: T4 Un-Divided
• Turbine Housing Outlet: 4″ V-Band
• Bearing Type: Ball Bearing
• HP Capacity: Supports over 1,100HP
• Garrett P/N: GTX4202R

Performance & Application

The GTX4202R is built for high-horsepower applications where a large-frame turbo with ball bearing responsiveness is required to move serious air. Its high-flowing compressor housing and un-divided T4 turbine inlet are matched to support output figures well beyond 1,100 horsepower. The built-in ported shroud design helps stave off compressor surge at the boundaries of the map, making this turbo suited to builders pushing aggressive boost levels and airflow demands. This is a turbo for the top-tier performance build, not a mild street upgrade.

Frequently Asked Questions

What HP can the GTX4202R support?

The GTX4202R supports over 1,100 horsepower.

Is the GTX4202R a ball bearing or journal bearing turbo?

The GTX4202R is a ball bearing turbocharger.

What turbine housing A/R and inlet configuration does the GTX4202R use?

It uses a 1.28 A/R turbine housing with a T4 un-divided inlet and a 4″ V-band outlet.

What compressor inlet and outlet does the GTX4202R feature?

The compressor housing features a 5″ inlet and a V-band outlet with a 4.5″ outer diameter ring (3.5″ ID).

For builders who need proven Garrett ball bearing performance in a large-frame package capable of supporting extreme horsepower, the GTX4202R delivers the flow, response, and durability to get there.</
