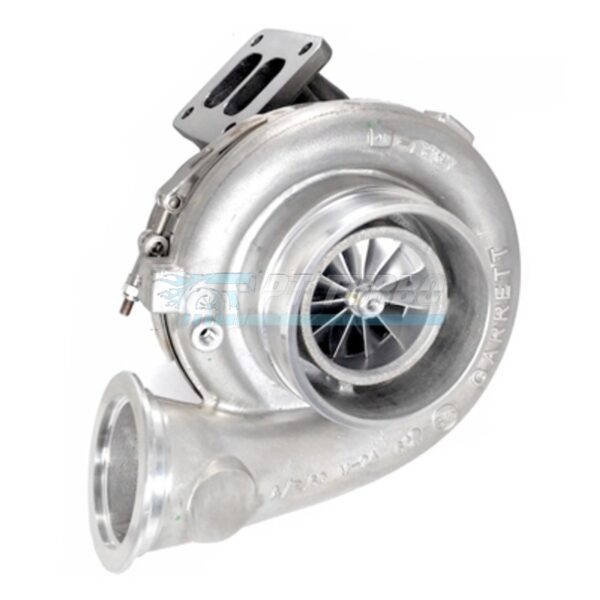

The Garrett GTX4202R is a large-frame ball bearing turbocharger built for enthusiasts targeting serious four-digit horsepower numbers without sacrificing the responsiveness that defines Garrett’s GTX-R lineup. Its combination of a ported shroud compressor housing and a T4 divided turbine housing makes it a compelling choice for high-output builds demanding both durability and efficient exhaust energy management. This is a turbo for those building a dedicated high-horsepower platform and unwilling to compromise on flow capacity or wheel design.
Specifications
- Compressor Wheel Inducer: 75.8mm
- Compressor Wheel Exducer: 102.3mm
- Compressor Wheel Trim: 55
- Compressor Housing A/R: 60 A/R
- Compressor Housing Frame: GT42R Frame
- Compressor Inlet: 5″ Inlet
- Compressor Outlet: V-Band 4.5″ OD (3.5″ ID) Outlet
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75.1mm
- Turbine Wheel Trim: 84 trim
- Turbine Housing A/R: 1.28 A/R
- Turbine Housing Inlet: T4 Divided Inlet
- Turbine Housing Outlet: 4″ V-Band Outlet
- Bearing Type: Ball Bearing
- HP Capacity: Supports over 1,100HP
Performance & Application
The GTX4202R is engineered for high-horsepower applications where a large frame turbocharger is required to sustain over 1,100HP. Its ball bearing core supports quick spool response for a turbo of this size, while the built-in ported shroud compressor housing helps manage surge under aggressive boost conditions. The T4 divided turbine housing is suited for applications benefiting from separated exhaust pulses feeding into a common turbine inlet. This turbocharger is intended for high-flow, high-output builds where large compressor and turbine wheel sizing is necessary to reach elevated power targets.
Frequently Asked Questions
- What HP can the GTX4202R support?
- The GTX4202R supports over 1,100HP.
- Is the GTX4202R a ball bearing or journal bearing turbo?
- The GTX4202R is a ball bearing turbocharger.
- What is the A/R ratio of the turbine housing?
- The turbine housing uses a 1.28 A/R with a T4 divided inlet and 4″ V-band outlet.
- What compressor inlet and outlet sizing does the GTX4202R use?
- The compressor housing features a 5″ inlet and a V-band outlet with a 4.5″ outer diameter ring and 3.5″ tube.
For builds demanding a large frame, high-flow ball bearing turbocharger capable of supporting over 1,100HP, the Garrett GTX4202R delivers the wheel sizing, housing configuration, and anti-surge technology required to get there.
