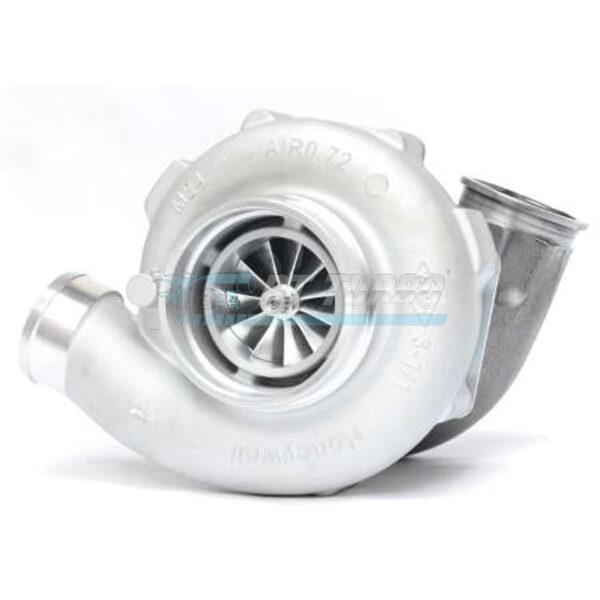

Garrett GTX4088R, V-Band Inlet & Outlet Turbine Housing

Garrett GTX4088R, V-Band Inlet & Outlet Turbine Housing

Price range: $2,395.00 through $2,490.00

Dual ball bearing GTX4088R with 65mm/88.4mm compressor wheel and 77mm/68mm turbine wheel; 850HP potential. Features V-band inlet/outlet turbine housing (3″ outlet, .89/.99/1.11 A/R options), T04H frame compressor housing, and Garrett 11-blade technology.

Specifications

  • Compressor Wheel Inducer: 65.0mm
  • Compressor Wheel Exducer: 88.4mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 77.0mm
  • Turbine Wheel Exducer: 68.0mm
  • Turbine Wheel Trim: 78
  • Bearing System: Dual Ball Bearing
  • HP Potential: 850HP
  • Turbine Housing Inlet: V-band
  • Turbine Housing Outlet: 3″ V-band
  • Available Turbine Housing A/R Ratios: .89, .99, 1.11
  • Compressor Housing Frame: T04H Frame
  • Compressor Housing Inlet: 4″
  • Compressor Housing Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Compressor Technology: Garrett 11-Blade
  • Optional Upgrade: Polished Housing available
Weight 20 lbs
Optional Polished Housing ($95)

,

Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett GTX4088R, V-Band Inlet & Outlet Turbine Housing”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the GTX4088R

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
