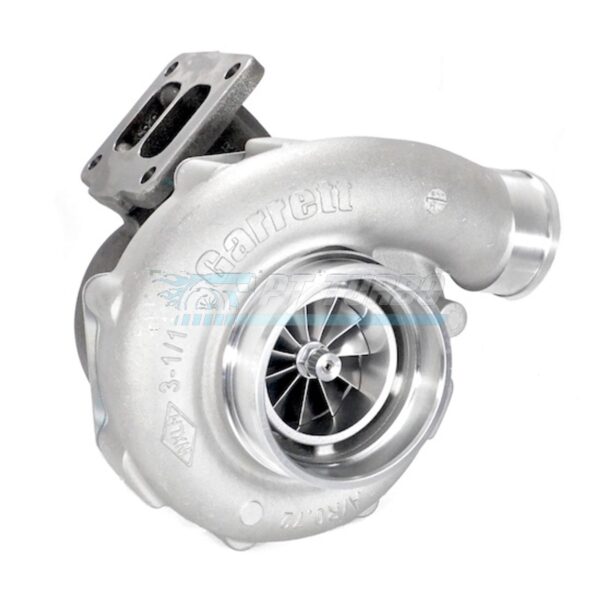

The Garrett GTX4088R with a 1.19 A/R T4 Divided (Twin-Scroll) Turbine Housing is built for enthusiasts and builders chasing serious top-end power without sacrificing the benefits of pulse energy from a twin-scroll exhaust manifold. This configuration is engineered for high-horsepower applications where durability, high-flow capability, and dual ball bearing responsiveness are non-negotiable. It’s the right choice for builders who demand a turbocharger capable of supporting big power goals while maintaining the structural advantages of Garrett’s proven GTX platform.
Specifications
- Compressor Wheel Inducer: 65.0mm
- Compressor Wheel Exducer: 88.4mm
- Compressor Wheel Trim: 54
- Compressor Housing A/R: .72
- Compressor Housing Frame: T04H
- Compressor Inlet: 4″ (Ported shroud anti surge)
- Compressor Outlet: 2.5″
- Turbine Wheel Inducer: 77.0mm
- Turbine Wheel Exducer: 68.0mm
- Turbine Wheel Trim: 78
- Turbine Housing A/R: 1.19
- Turbine Housing Inlet: T4 Divided (Twin-scroll)
- Turbine Housing Outlet: 3″ V-Band
- Bearing System: Dual Ball Bearing
- HP Capacity: 850HP+ potential flow
Performance & Application
The GTX4088R’s twin-scroll turbine housing design is suited to applications where exhaust pulse separation is used to improve turbine response, making it a strong candidate for high-output builds that still value driveability. Its dual ball bearing architecture delivers the fast response and durability required for aggressive power targets, while the ported shroud compressor inlet extends the usable range of the compressor map against surge. With potential flow supporting output beyond 850 horsepower, this turbocharger is intended for builders pushing well past stock power levels into serious performance territory. The 3″ V-Band turbine outlet and .72 A/R compressor housing round out a configuration built for high-flow, high-boost applications.
Frequently Asked Questions
- Is the GTX4088R a ball bearing turbo?
- Yes, the GTX4088R is a dual ball bearing turbocharger.
- What is the A/R ratio of the turbine housing?
- This turbine housing has a 1.19 A/R with a T4 Divided (Twin-Scroll) inlet.
- What horsepower can the GTX4088R support?
- This turbocharger has 850HP+ potential flow capacity.
- What outlet does the turbine housing use?
- The turbine housing features a 3″ V-Band outlet.
For builders targeting serious horsepower with the response benefits of a twin-scroll turbine housing, the GTX4088R delivers the flow capacity and dual ball bearing durability to get there.
