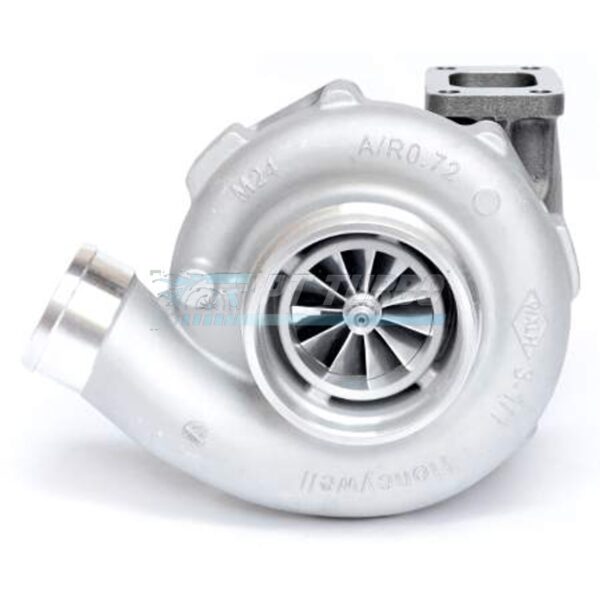

The Garrett GTX4088R with T3 Inlet and 3″ V-band Outlet Turbine Housing is engineered for serious performance builders chasing big power without sacrificing response. Built on Garrett’s proven GTX platform with dual ball bearing architecture, this turbo is the choice for enthusiasts who demand both high-end flow capacity and the durability to back it up. Whether you’re building a track-focused platform or a high-horsepower street build, the GTX4088R delivers the flow characteristics serious applications require.
Specifications
- Compressor Wheel Inducer: 65.0mm
- Compressor Wheel Exducer: 88.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 77.0mm
- Turbine Wheel Exducer: 68.0mm
- Turbine Wheel Trim: 78
- Bearing System: Dual Ball Bearing
- Compressor Technology: Garrett 11-Blade
- HP Potential: 850HP
- Compressor Housing: T04H Frame
- Compressor Housing Inlet: 4″
- Compressor Housing Outlet: 2.5″
- Compressor Housing Feature: Built-in & machined anti-surge
- Turbine Housing Inlet: T3
- Turbine Housing Outlet: 3″ V-band
- Available Turbine Housing A/R: .89, .99, or 1.11
Performance & Application
The GTX4088R is built for enthusiasts targeting high-horsepower output while retaining strong drivability characteristics. Its ultra high flow compressor wheel combined with Garrett’s 11-Blade technology is designed to maximize flow efficiency at the top end without giving up throttle response. Selectable turbine housing A/R sizing allows builders to dial in spool characteristics to match their specific power goals and driving style, from more responsive setups to housings optimized for peak flow. This turbo is suited to high-output builds where both strong mid-range pull and serious top-end capability are required.
Frequently Asked Questions
- What HP can the GTX4088R support?
- The GTX4088R has an 850HP potential flow capacity.
- Is the GTX4088R a ball bearing or journal bearing turbo?
- The GTX4088R is a dual ball bearing turbocharger.
- What turbine housing inlet and outlet does this turbo use?
- This GTX4088R includes a T3 Inlet and 3″ V-band Outlet turbine housing.
- What A/R sizes are available for the turbine housing?
- The turbine housing is available in .89, .99, or 1.11 A/R sizes.
- What is the standard compressor housing configuration?
- The standard compressor housing is a T04H Frame with a 4″ inlet, 2.5″ outlet, and built-in & machined anti-surge design.
For builders who need proven flow capacity, dual ball bearing durability, and the flexibility to tune spool behavior through turbine housing A/R selection, the GTX4088R with T3 Inlet and 3″ V-band Outlet Turbine Housing delivers the performance foundation for a serious high-horsepower build.
