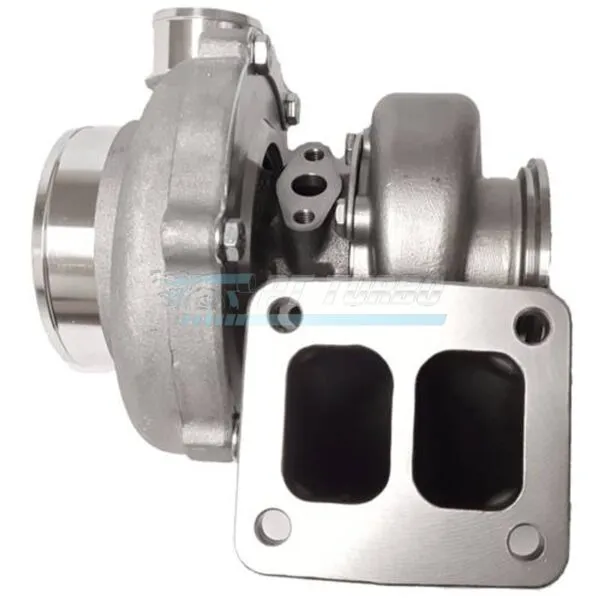

Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing & V-Band Outlet Comp. Hsg)

The Garrett GTX3584RS is a purpose-built, dual ball bearing turbocharger engineered for enthusiasts chasing serious top-end power without sacrificing usable response. Pairing an advanced GEN2 billet compressor wheel with an ultra high-flow “RS” turbine wheel, this unit is built for those who demand maximum output from a compact, efficient package. It’s the turbo of choice for builders who refuse to compromise between spool characteristics and outright horsepower potential.

Specifications

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 inch diameter
• Compressor Housing Outlet: V-Band Flange
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing: T4 Divided Inlet, 3″ V-Band Outlet, 1.06 A/R
• Bearing System: Dual Ball Bearing
• HP Capacity: Supports up to 1,000HP
• Alternate P/N: GRT-TBO-591 (Hose Bead Outlet Compressor Housing option)

Performance & Application

Built around a GEN2 billet compressor wheel and a high-flow RS turbine wheel, the GTX3584RS is designed to deliver strong response while still supporting massive power figures. The compact housing design allows this turbo to operate efficiently across a wide boost range, making it well suited for builders targeting big horsepower without the typical lag associated with larger frame turbos. This combination makes the GTX3584RS a strong choice for high-output performance builds that still require a manageable spool characteristic.

Frequently Asked Questions

What HP can the Garrett GTX3584RS support?

The GTX3584RS is rated to support up to 1,000HP.

Is the GTX3584RS a ball bearing or journal bearing turbocharger?

The GTX3584RS is a dual ball bearing turbocharger.

What turbine housing configuration does the GTX3584RS use?

It uses a T4 Divided Inlet turbine housing with a 3″ V-band outlet and a 1.06 A/R ratio.

What compressor outlet options are available for the GTX3584RS?

The standard configuration includes a V-Band Flange compressor outlet housing. A Hose Bead Outlet Compressor Housing is also available under part number GRT-TBO-591.

For enthusiasts building toward four-figure
