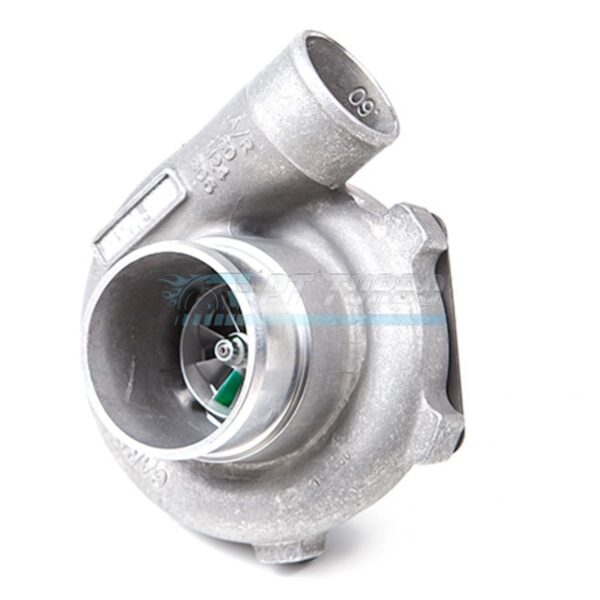

The Garrett GTX2867R Gen1 dual ball bearing turbocharger is built for enthusiasts who want a direct, bolt-in upgrade path from their GT2871R without reworking the engine bay. Featuring Garrett’s advanced 10-Blade compressor wheel technology, this turbo delivers a meaningful step up in flow and response while retaining the familiar GT28 footprint. It’s the choice for builders who want more capability from their existing platform without sacrificing packaging simplicity.

Specifications

• Compressor Wheel: Garrett 10-Blade ultra high flow compressor wheel
• Bearing System: Dual ball bearing
• HP Capacity: 475HP
• Compressor Housing Style: GT28 style
• Compressor Inlet: 3″
• Compressor Outlet: 2″
• Compressor Housing Feature: Built-in anti-surge machining
• Turbine Wheel (housing sold separately): 53.86mm 76 trim, same as used on GT2871R
• External Dimensions: Same as base GT2871R
• Oil & Coolant Fittings: Same as standard GT28/GT30R/GT35R turbo
• Garrett P/N: 816366-5001S
• Alternate P/N: 816366-1
• Alternate P/N: 446179-0094

Performance & Application

Built around Garrett’s dual ball bearing core and 10-Blade compressor wheel technology, the GTX2867R Gen1 is engineered to support up to 475HP while maintaining the sharp, low-inertia response ball bearing turbos are known for. The GT28-style compressor housing with built-in anti-surge machining helps extend the usable compressor map, making it a strong fit for enthusiasts pushing their GT2871R-based setup further without changing turbine housing hardware. Because it shares the same external dimensions, oil, and coolant fittings as the standard GT28/GT30R/GT35R family, it drops into existing plumbing and mounting points with no engine bay modifications required.

Frequently Asked Questions

What HP can the GTX2867R Gen1 support?

This turbo is rated to support up to 475HP.

Is this a ball bearing or journal bearing turbo?

The GTX2867R Gen1 uses a dual ball bearing design.

Does this turbo come with a turbine housing?

No, the turbine housing is sold separately. It is the same housing used on the GT2871R and uses a 53.86mm 76 trim turbine wheel.

Will this fit in place of my GT2871R without modification?

Yes, the external dimensions of this turbo match the base GT2871R, so no engine bay changes are required to fit it in place.

For builders seeking a proven, bolt-in path to more power beyond a stock GT2871R, the GTX2867R Gen1 delivers Garrett’s ball bearing performance and 10-Blade compressor technology in a footprint you already know.
