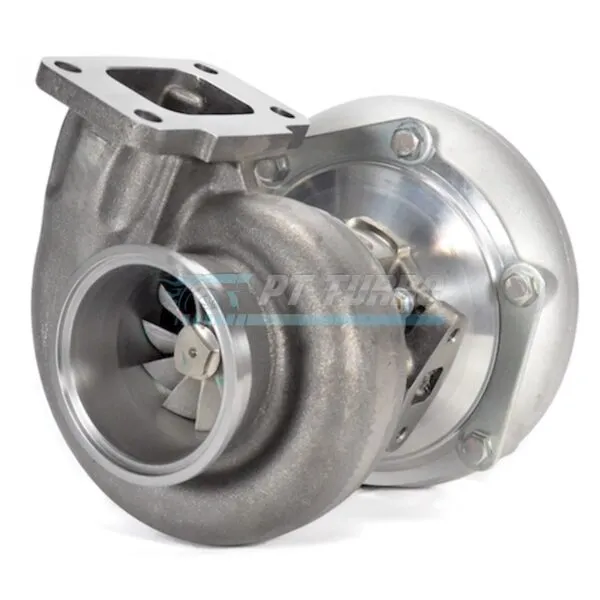

Garrett GTW3884R (aka GTW6765R), 67mm BB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3884R (aka GTW6765R), 67mm BB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3884R (aka GTW6765R), 67mm BB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3884R (aka GTW6765R), 67mm BB Turbo + T3 V-Band Turbine Hsg 1.06 A/R

Garrett GTW3884R (aka GTW6765R), 67mm BB Turbo + T3 V-Band Turbine Hsg 1.06 A/R

$1,995.00

Ball bearing 67mm turbo with 950HP capacity, T3 inlet and GT 3″ V-Band outlet. 1.06 A/R turbine housing (GTW3884R/GTW6765R).

Specifications

  • Compressor Wheel Inducer: 67.3mm
  • Compressor Wheel Exducer: 84.4mm
  • Compressor Wheel Trim: 64
  • Turbine Wheel Inducer: 74.2mm
  • Turbine Wheel Exducer: 64.6mm
  • Turbine Wheel Trim: 76
  • Compressor Housing Frame: T04S Frame
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Turbine Housing A/R: 1.06
  • Turbine Inlet: T3
  • Turbine Outlet: GT 3″ V-Band
  • Bearing Type: Ball bearing
  • HP Capacity: 950HP potential flow
  • Model: GTW3884R
  • Also Known As: GTW6765R
Weight 20 lbs
