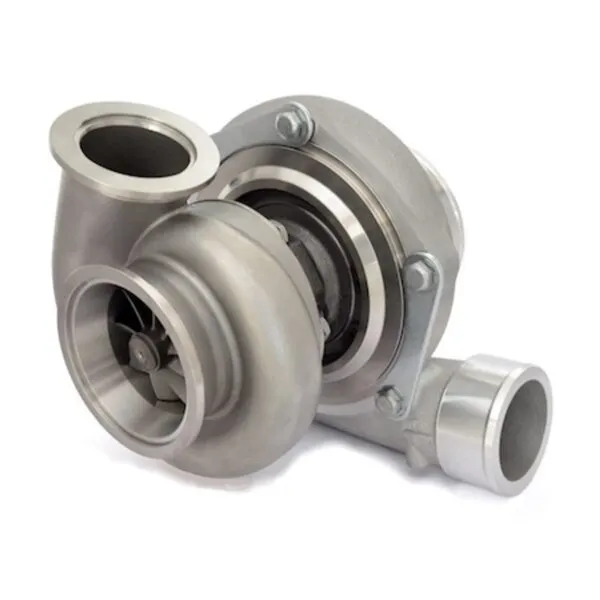

The Garrett GTW3884R is a 67mm ball bearing turbocharger built for enthusiasts chasing serious, high-flow power without sacrificing the convenience of a bolt-in V-band solution. Designed for builders already running TiAL-flanged manifolds and down-pipes, this turbo delivers Garrett’s proven GTW-series engineering in a package that drops directly into an existing V-band setup. It’s the choice for those who want big turbo performance with a streamlined installation.
Specifications
- Compressor Wheel Inducer: 67.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 64
- Turbine Wheel Inducer: 74.2mm
- Turbine Wheel Exducer: 64.6mm
- Turbine Wheel Trim: 76
- Compressor Housing: T04S Frame with 4″ inlet, 2.5″ outlet, and built-in & machined anti-surge
- Turbine Housing A/R: .82 A/R
- Turbine Housing Material: Stainless Steel with V-Band Inlet and V-Band Outlet
- Bearing Type: Ball Bearing
- HP Potential: 950HP
- Garrett P/N: GTW3884R
- Also Known As: GTW6765R
Performance & Application
The GTW3884R is Garrett’s Performance solution to the popular 6766 size turbo, offering great performance at a competitive price. Its ball bearing design and 950HP potential flow make it well suited for high-output builds seeking strong power delivery. The turbine housing mounts directly to existing TiAL flanged turbo manifolds and down-pipes, making it an ideal upgrade path for platforms already built around that V-band standard. For builders wanting a different turbine housing characteristic, a 1.03 A/R V-Band Turbine Housing option is also available in place of the standard .82 A/R.
Compatibility & Fitment
- Turbine housing is compatible with and mounts to existing TiAL flanged turbo manifolds
- Turbine housing is compatible with and mounts to existing TiAL flanged down-pipes
Frequently Asked Questions
- What HP can the GTW3884R support?
- The GTW3884R offers 950HP potential flow.
- Is this a ball bearing or journal bearing turbo?
- The GTW3884R is a 67mm ball bearing turbo.
- What is the A/R ratio of the turbine housing?
- The included turbine housing is .82 A/R. A 1.03 A/R V-Band Turbine Housing option is also available instead of the .82 A/R.
- What does GTW6765R refer to?
- GTW6765R is an alternate name (aka) for the Garrett GTW3884R.
- Is this turbo compatible with TiAL flanges?
- Yes, the turbine housing is compatible and mounts to existing TiAL flanged turbo manifolds and down-pipes.
For builders running TiAL V-band manifolds who want proven Garrett GTW-series performance and up to 950HP potential, the GTW3884R (GTW6765R) delivers a direct-fit, high-flow solution engineered for serious results.
