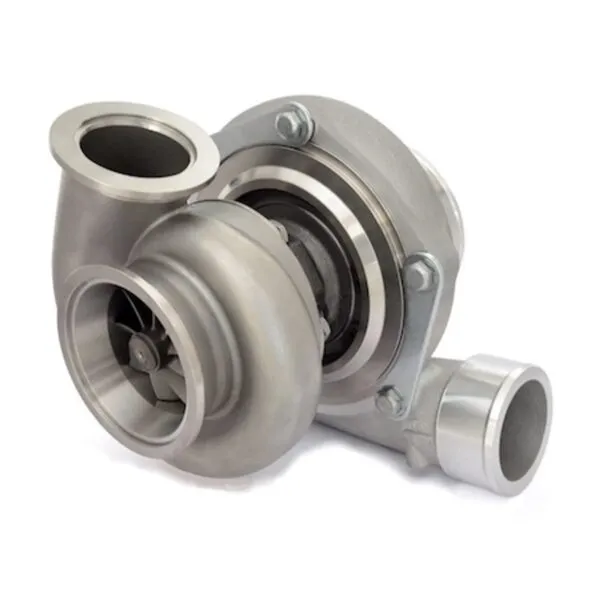

The Garrett GTW3884R is a purpose-built 62mm ball bearing turbocharger for enthusiasts who want big power without sacrificing the drivability of a properly matched, high-flowing compressor and turbine combination. Engineered as Garrett’s performance-focused alternative to the popular 6266 turbo size, it delivers serious top-end capability while keeping cost in check. This is the turbo for builders who demand real flow numbers backed by Garrett engineering, not marketing hype.
Specifications
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 74.2mm
- Turbine Wheel Exducer: 64.6mm
- Turbine Wheel Trim: 76
- Bearing Type: Ball Bearing
- HP Potential Flow: 800HP
- Turbine Housing: Stainless Steel, V-Band Inlet and V-Band Outlet, .82 A/R
- Compressor Housing: T04S Frame with 4″ inlet, 2.5″ outlet, and built-in & machined anti-surge
- Also Known As: GTW6265R
Performance & Application
The GTW3884R is built for high-horsepower applications where a strong, efficient compressor side needs to be paired with a turbine housing capable of feeding it under real boost demand. Its .82 A/R stainless steel V-Band turbine housing is designed to bolt directly onto existing TiAL flanged turbo manifolds and down-pipes, simplifying installation for builders already running TiAL V-Band hardware. The T04S compressor housing’s built-in and machined anti-surge design supports strong, stable airflow delivery at the high boost levels this turbo is capable of producing. This combination makes the GTW3884R a strong choice for serious performance builds looking to push into the 800HP flow potential range.
Compatibility & Fitment
- Turbine housing is compatible and mounts to existing TiAL flanged turbo manifolds
- Turbine housing is compatible and mounts to existing TiAL flanged down-pipes
Frequently Asked Questions
- What HP can the GTW3884R support?
- The GTW3884R has an 800HP potential flow rating.
- Is this a ball bearing or journal bearing turbo?
- The GTW3884R is a 62mm ball bearing turbo.
- What turbine housing A/R ratio does the GTW3884R use?
- It includes a .82 A/R stainless steel V-Band turbine housing, with a 1.03 A/R V-Band turbine housing available as an option.
- What does GTW6265R refer to?
- GTW6265R is an alternate name for the Garrett GTW3884R turbocharger.
- Is the GTW3884R compatible with TiAL manifolds?
- Yes, the turbine housing is compatible and mounts to existing TiAL flanged turbo manifolds and down-pipes.
For builders chasing serious power with a turbo backed by genuine Garrett engineering and TiAL V-Band compatibility, the GTW3884R delivers the flow capacity and housing flexib
