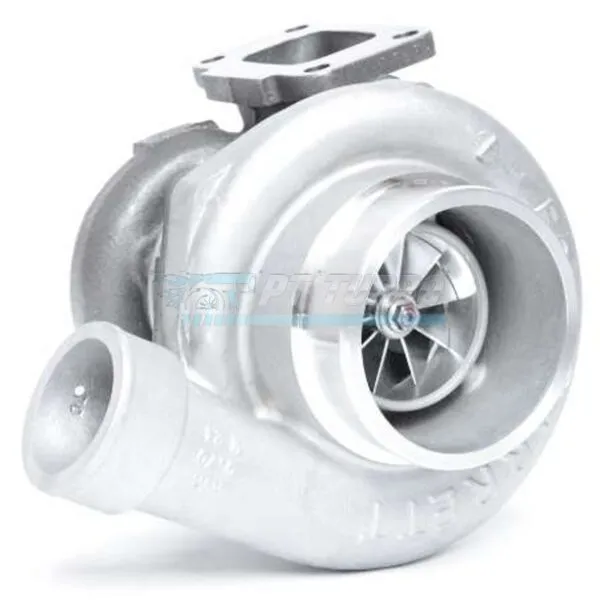

Name: Garrett GTW3884R (aka GTW6265R), 62mm Ball Bearing - Select Housing Options
Brand: Garrett
SKU: PTT-TBO-430
Availability: InStock

Specifications

Compressor Wheel Inducer: 62.3mm
Compressor Trim: 54-trim
Turbine Wheel: 74.2mm
Turbine Trim: 76-trim
Bearing System: Ball Bearing
HP Capacity: 800HP-capable
Frame Housing: T04S frame housing
Compressor Housing Option 1: T04S (4″ Inlet, 2.5″ Outlet) with machined anti-surge
Compressor Housing Option 2: T04E (4″ Inlet w/ anti-surge & 2″ Outlet, Compact Solution)
Turbine Housing A/R .63: Available in T3 Inlet; 4 Bolt, 2.5″ V-band or 3.0″ V-Band Outlet
Turbine Housing A/R .63: Available in V-Band machined Inlet; 2.5″ V-band Outlet
Turbine Housing A/R .68: Available in T4 Non-Divided Inlet; V-band 3″ Outlet
Turbine Housing A/R .78: Available in T3 Divided Inlet; V-band 3″ Outlet
Turbine Housing A/R .81: Available in T4 Non-Divided Inlet; V-band 3″ Outlet
Turbine Housing A/R .82: Available in T3 Inlet; 4 Bolt, 5 Bolt Ford Style, 2.5″ V-band or 3.0″ V-Band Outlet
Turbine Housing A/R .82 (V-Band): Available in V-Band machined Inlet; 2.5″ V-band Outlet; ATP Stainless V-band (Tial Compatible)
Turbine Housing A/R .96: Available in T4 Non-Divided Inlet; V-band 3″ Outlet
Turbine Housing A/R 1.06: Available in T3 Non-Divided Inlet; V-band 3.0″ Outlet
Turbine Housing A/R 1.16: Available in T3 Divided Inlet; 4 Bolt, 3″ Outlet
Turbine Housing A/R 1.16 (V-Band): Available in T3 Divided Inlet; 3″ V-band Outlet via welded ring
Model: GTW3884R
Also Known As: GTW6265R

Weight	14 lbs
PTrim Turbine Wheel	.63 A/R (Available in T3 Inlet; 4 Bolt, 2.5" V-band or 3.0" V-Band Outlet), .63 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet), .68 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .78 A/R (Available in T3 Divided Inlet; V-band 3" Outlet), .81 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .82 A/R (Available in T3 Inlet; 4 Bolt, 5 Bolt Ford Style, 2.5" V-band or 3.0" V-Band Outlet), .82 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet); ATP Stainless V-band (Tial Compatible), .96 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), 1.06 A/R (Available in T3 Non-Divided Inlet; V-band 3.0" Outlet), 1.16 A/R (Available in T3 Divided Inlet; 4 Bolt, 3" Outlet), 1.16 A/R (Available in T3 Divided Inlet; and 3" V-band Outlet via welded ring
Turbine Housing Options	T3 Inlet, 4 Bolt Outlet (2.5"), T3 Inlet, V-Band Outlet (2.5"), T3 Non-Divided Inlet, machined V-Band Outlet 3" GTVB 1.06 A/R Only, T3 Non-Divided Inlet, welded V-Band Outlet (GT 3.0"). Available in .63, .82, or 1.08 A/R, T3 Divided Inlet, 4 Bolt Outlet (3.0"). Available in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet via welded ring in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet (3.0"), T3 Inlet, 5 Bolt (Ford Style) Outlet (Only .82 A/R Available), T4 Non-Divided Inlet, V-Band Outlet (3.0"), Stainless (Tial Compatible) V-Band in/Out (Only .82 A/R Available)
Compressor Housing Options	T04S (4" Inlet, 2.5" Outlet) with machined anti-surge, T04E (4" Inlet w/ anti-surge & 2" Outlet (Compact Solution)
