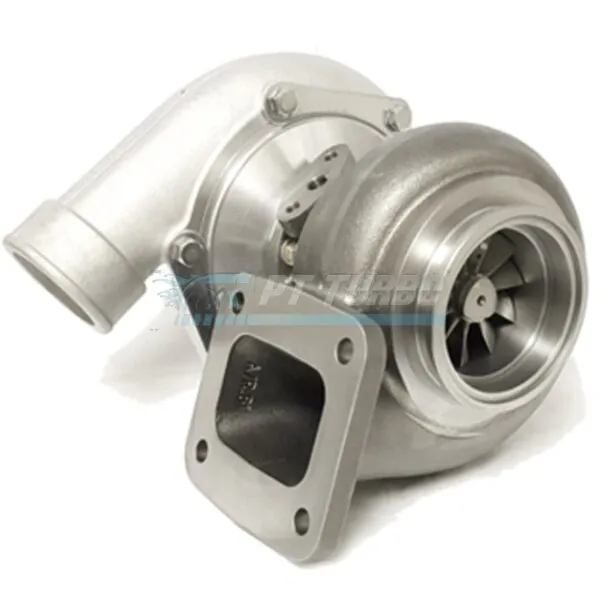

Garrett GTW3884R 67mm (aka GTW6765R) BB turbo, .81 A/R T4 UND w/ 3" VB 81mm groove
Garrett GTW3884R 67mm (aka GTW6765R) BB turbo, .81 A/R T4 UND w/ 3" VB 81mm groove
Garrett GTW3884R 67mm (aka GTW6765R) BB turbo, .81 A/R T4 UND w/ 3" VB 81mm groove
Garrett GTW3884R 67mm (aka GTW6765R) BB turbo, .81 A/R T4 UND w/ 3" VB 81mm groove

Garrett GTW3884R 67mm (aka GTW6765R) BB turbo, .81 A/R T4 UND w/ 3″ VB 81mm groove

$1,995.00

Garrett GTW3884R 67mm ball bearing turbo: 900 HP flow with .81 A/R T4 undivided housing and 3″ V-band. 67.3mm compressor inducer, 74.2mm turbine inducer, and 58/76 trim wheels. Alternative to the 6466 size.

Specifications

  • Compressor Wheel Inducer: 67.3 mm
  • Compressor Wheel Exducer: 84.4 mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 74.2 mm
  • Turbine Wheel Exducer: 64.6 mm
  • Turbine Wheel Trim: 76
  • Turbine Housing A/R: .81 A/R T4 undivided
  • Turbine Housing Outlet: 3″ V-band, 81mm center groove
  • Compressor Housing Frame: T04S Frame
  • Compressor Housing Inlet: 4″
  • Compressor Housing Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Bearing Type: Ball bearing
  • HP Potential: 900 HP potential flow
  • Model: GTW6765R
  • Also Known As: GTW3884R
Weight 20 lbs
