Name: Garrett GTW3884JB (aka GTW6765JB), 67mm Journal Bearing - Select Housing Options
Brand: Garrett
SKU: PTT-TBO-455
Availability: InStock

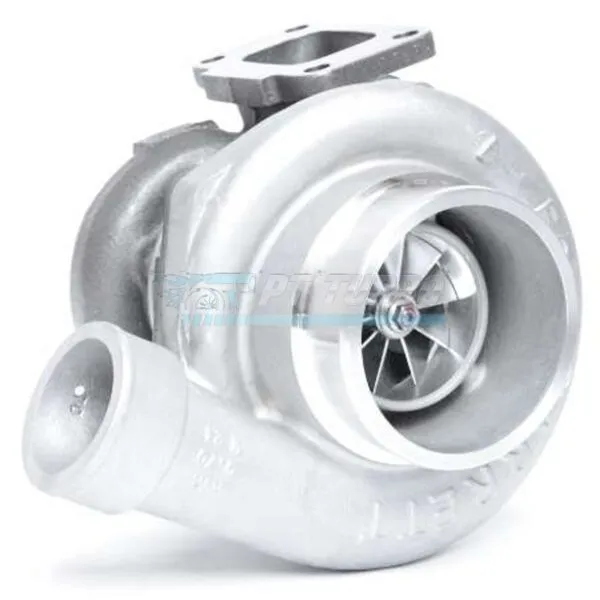

Garrett GTW3884JB journal bearing turbo with 950HP potential flow capacity. Features 67.3mm compressor inducer (84.4mm exducer, 64 trim) and 74.2mm turbine inducer (64.6mm exducer, 76 trim). T04S frame housing with 4″ inlet, 2.5″ outlet, and integrated anti-surge—performance alternative to 6766-size turbos at competitive pricing.

Specifications

Compressor Wheel Inducer: 67.3mm
Compressor Wheel Exducer: 84.4mm

Weight	14 lbs
PTrim Turbine Wheel	.63 A/R (Available in T3 Inlet; 4 Bolt, 2.5" V-band or 3.0" V-Band Outlet), .63 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet), .68 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .78 A/R (Available in T3 Divided Inlet; V-band 3" Outlet), .81 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .82 A/R (Available in T3 Inlet; 4 Bolt, 5 Bolt Ford Style, 2.5" V-band or 3.0" V-Band Outlet), .82 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet); ATP Stainless V-band (Tial Compatible), .96 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), 1.06 A/R (Available in T3 Non-Divided Inlet; V-band 3.0" Outlet), 1.16 A/R (Available in T3 Divided Inlet; 4 Bolt, 3" Outlet), 1.16 A/R (Available in T3 Divided Inlet; and 3" V-band Outlet via welded ring
Turbine Housing Options	T3 Inlet, 4 Bolt Outlet (2.5"), T3 Inlet, V-Band Outlet (2.5"), T3 Non-Divided Inlet, machined V-Band Outlet 3" GTVB 1.06 A/R Only, T3 Non-Divided Inlet, welded V-Band Outlet (GT 3.0"). Available in .63, .82, or 1.08 A/R, T3 Divided Inlet, 4 Bolt Outlet (3.0"). Available in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet via welded ring in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet (3.0"), T3 Inlet, 5 Bolt (Ford Style) Outlet (Only .82 A/R Available), T4 Non-Divided Inlet, V-Band Outlet (3.0"), Stainless (Tial Compatible) V-Band in/Out (Only .82 A/R Available)
